E-TOUCH XL Handheld Dot Peen Marking Machine
5 (1 đánh giá)
The new handheld marking solution SIC Marking offers outstanding mobility. The E-TOUCH XL Handheld Dot Peen Marking Machine enables reliable part identification using dot peen technology.
- MOBILE: No bulky controller, no complex physical keyboard, no risk of battery interruption
- COMPACT: Lightweight design at only 2.6 kg for easy handling
- SMART: Large capacitive touchscreen with intuitive icon-based interface

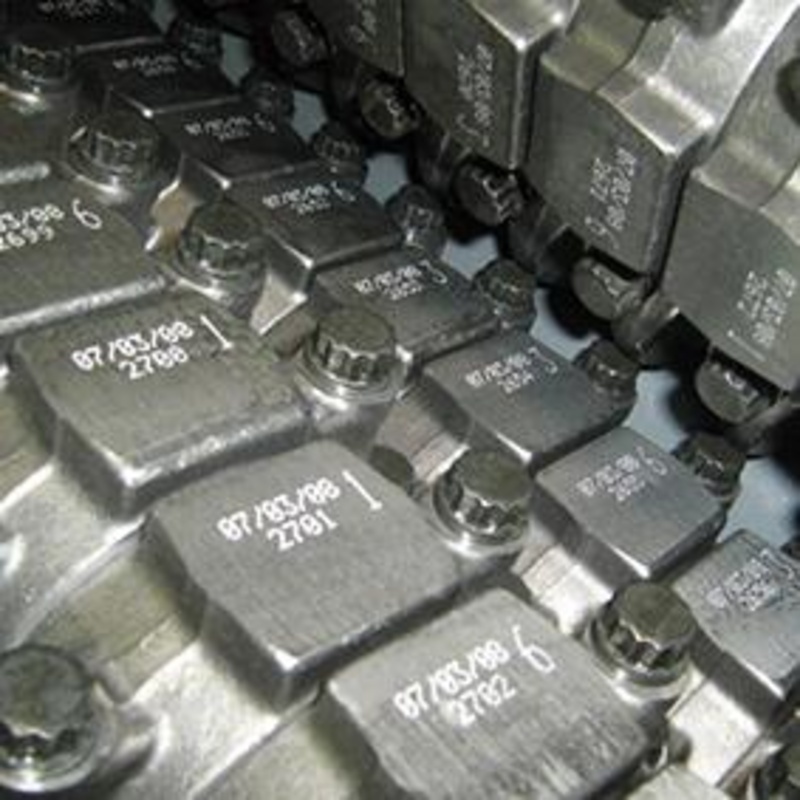

- RELIABLE: Ensures permanent, tamper-proof marking directly on the material
The E-TOUCH XL Handheld Dot Peen Marking Machine, a larger version of the E-TOUCH, delivers enhanced performance and maximum user comfort at a highly competitive price.
Contact
(+84)-964-658-958
Advantage
E-TOUCH XL – Ultra-Mobile and Most Compact on the Market
.png)

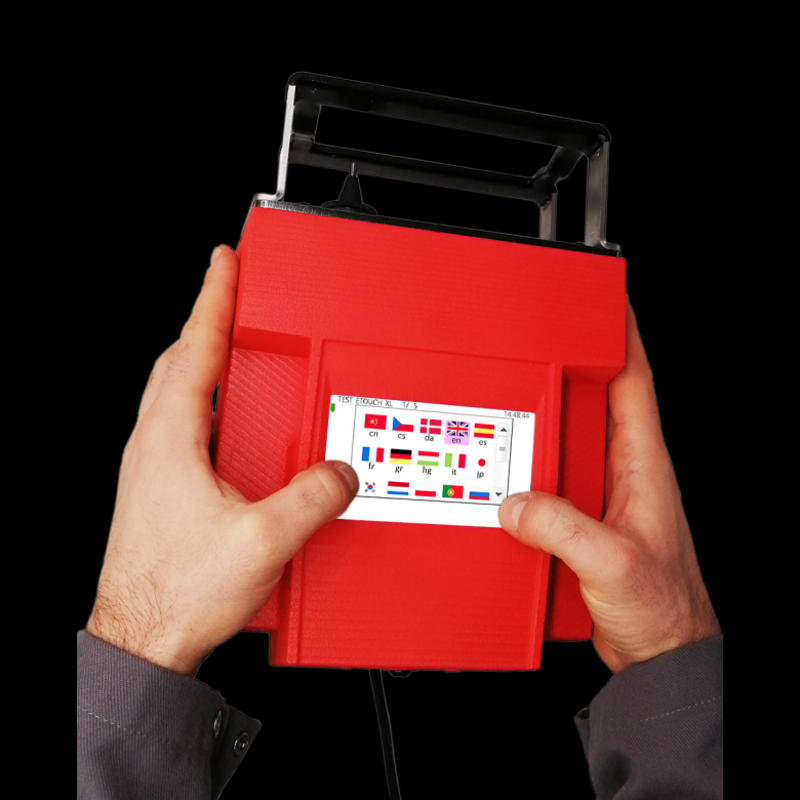

User-friendly and flexible interface allows two-handed programming similar to a smartphone

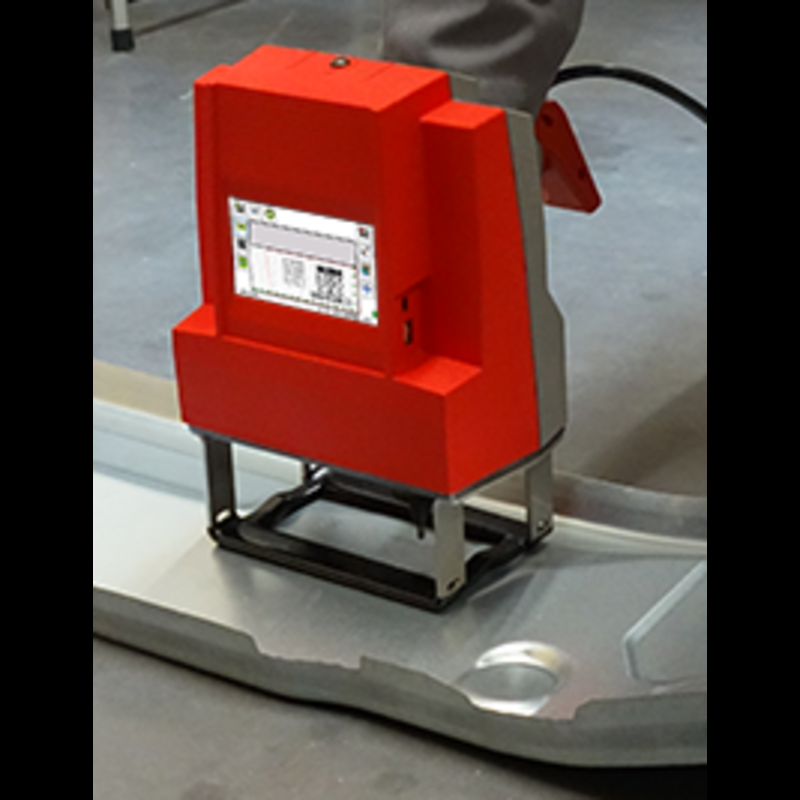

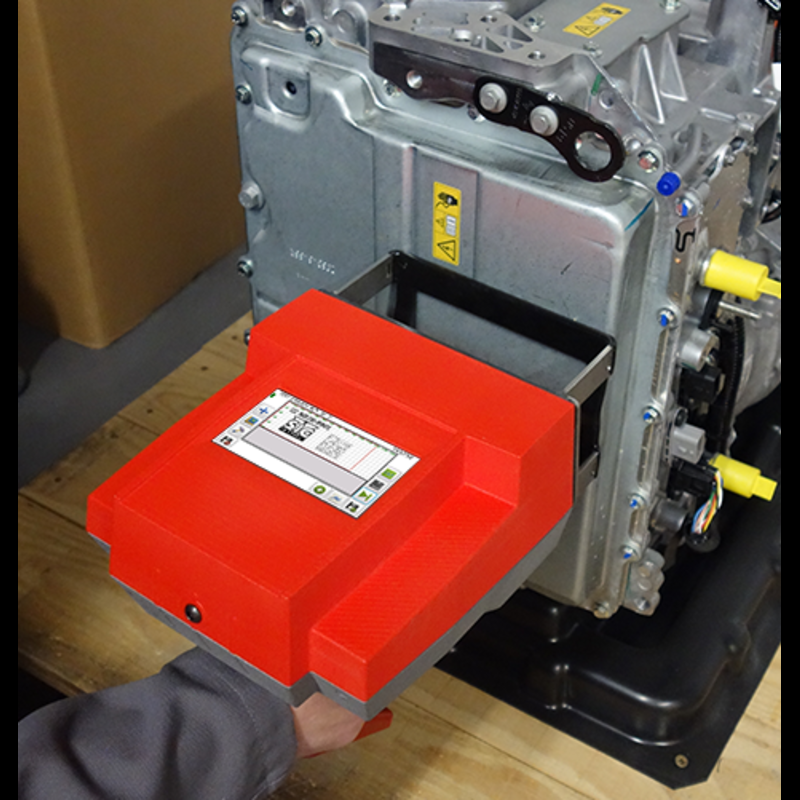

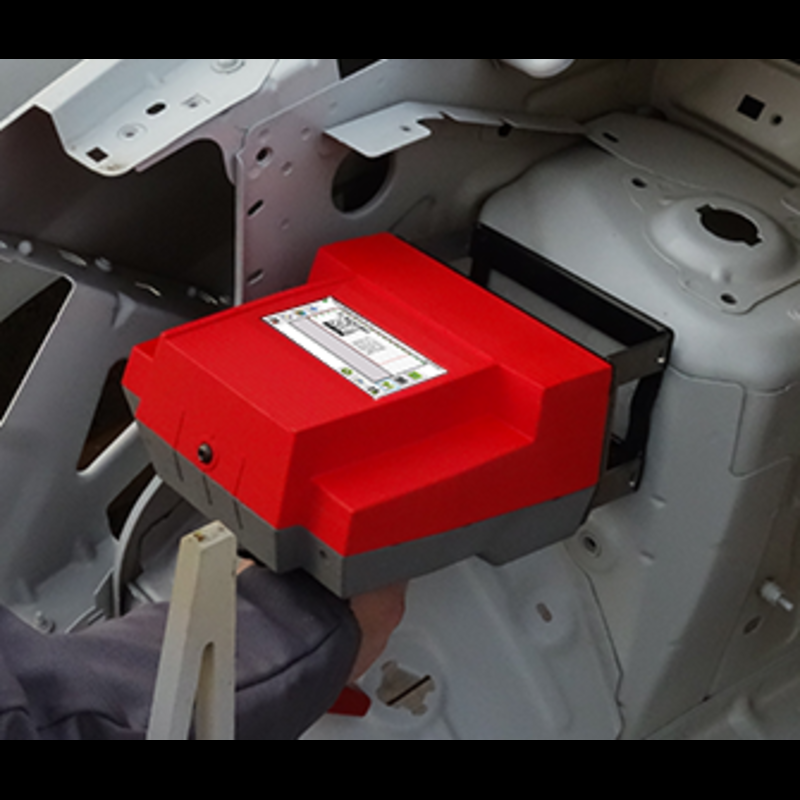

Robust design for marking heavy, bulky, or hard-to-reach parts
Tungsten carbide stylus integrated the electromagnetic marking assembly enables marking of text, logos, Data Matrix codes, and QR codes
E-TOUCH XL Handheld Dot Peen Marking Machine
TECHNICAL SPECIFICATIONS – E-TOUCH XL HANDHELD DOT PEEN MARKING MACHINE
Marking Unit:
- Marking Window: 120 x 50 mm
- Dimensions: 272 x 194 x 251 mm
- Weight: 2.6 kg
- Stylus Material: Tungsten Carbide
- Cable Length: 5 m
Controller:
- Display: HD screen 95 x 55 mm
- Keyboard: Touchscreen
- Power: 100 W
- Input Power: Single-phase, 85 – 260 V AC, 50 – 60 Hz
- Connectivity: USB
Software:
- File Capacity: More than 20,000 files
- Internal Memory: 100 MB
- Marking Content: Alphanumeric, Data Matrix, Serial Numbers, Codes
- Logo: Created via PC software or uploaded via USB
- Data Matrix: Up to 348 characters (48 x 48 dots)
- Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 4x6
- Marking Styles: Angular, Radial, Inverse, Mirror
- Character Height: 0.1 to 99 mm
- Marking Depth: Up to 0.3 mm or more depending on material
- Marking Force Adjustment: 9 levels
- Work Shifts: 10 shifts
- Available Languages: 17
Optional Accessories:
- Maintenance kit
- Self-centering support
- Trolley
- Barcode reader
- Mounting column
AUTHORIZED SUPPLIER OF E-TOUCH XL HANDHELD DOT PEEN MARKING MACHINE
The E-TOUCH XL Handheld Dot Peen Marking Machine weighs only 2.6 kg but delivers impressive performance, making it ideal for marking heavy, bulky, or hard-to-reach parts.
WHY CHOOSE VGTECH
VGTECH (Vietnam Global Trading & Technology Co., Ltd.) proudly provides leading marking solutions SIC Marking in Vietnam
- Genuine products: Direct import with full CO/CQ documentation
- Competitive pricing: Attractive policies for B2B customers and projects
- Professional technical service: Installation, training, and on-site support in Hai Duong, Hai Phong, Bac Ninh, and surrounding areas
- Free sample marking: Send your parts for real marking tests and evaluation
CONTACT FOR CONSULTATION AND QUOTATION
VIET GLOBAL TRADING AND TECHNOLOGY CO., LTD
Address: Floor 5, Hoa Xa Building, 360 Nguyen Luong Bang Street, Le Thanh Nghi Ward, Hai Phong City, Vietnam
Phone: (+84) 220-6-529-526 | (+84) 964-658-958
Email: vgtechcom@vgtech.com.vn
Website: https://vgtech.com.vn/
Xem thêm
Advantage
E-TOUCH XL – Ultra-Mobile and Most Compact on the Market
User-friendly and flexible interface allows two-handed programming similar to a smartphone
Robust design for marking heavy, bulky, or hard-to-reach parts
Tungsten carbide stylus integrated the electromagnetic marking assembly enables marking of text, logos, Data Matrix codes, and QR codes
