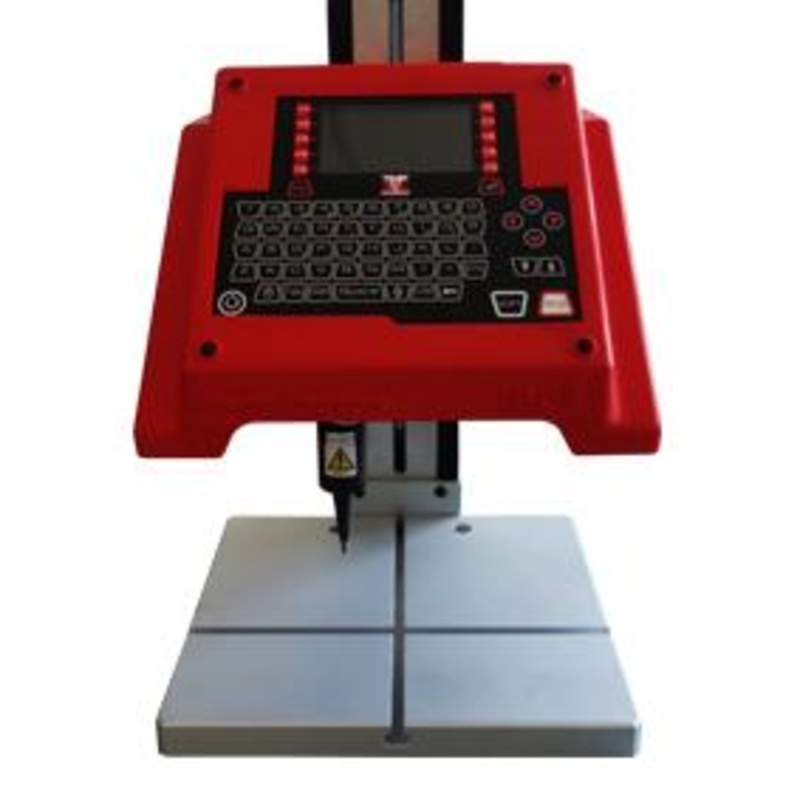

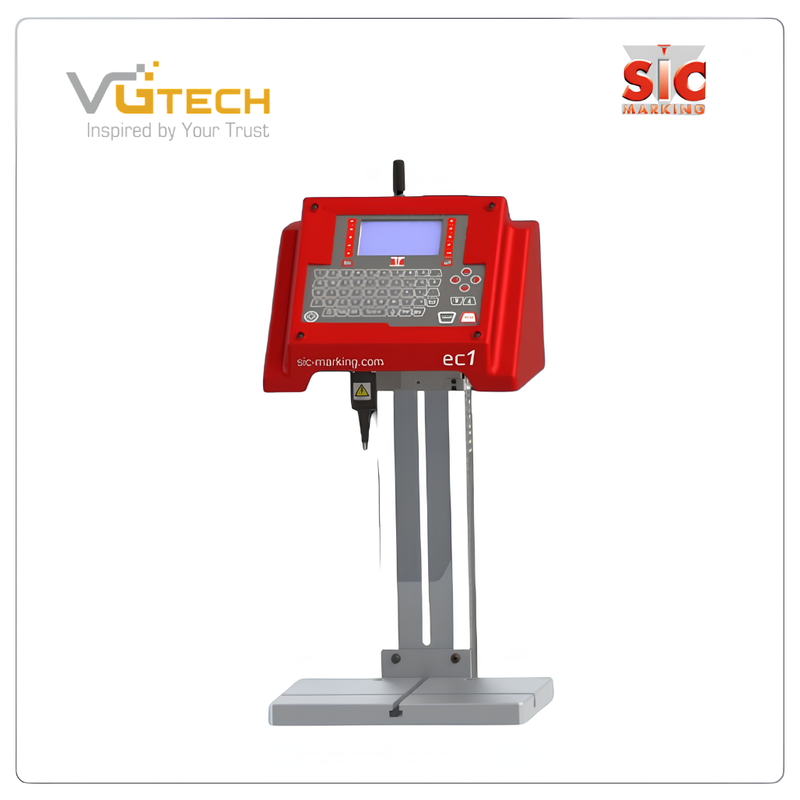

EC1 Column-Mounted Dot Peen Marking Machine
5 (1 đánh giá)
The EC1 Column-Mounted Dot Peen Marking Machine is a robust and reliable marking system suitable for a wide range of applications.

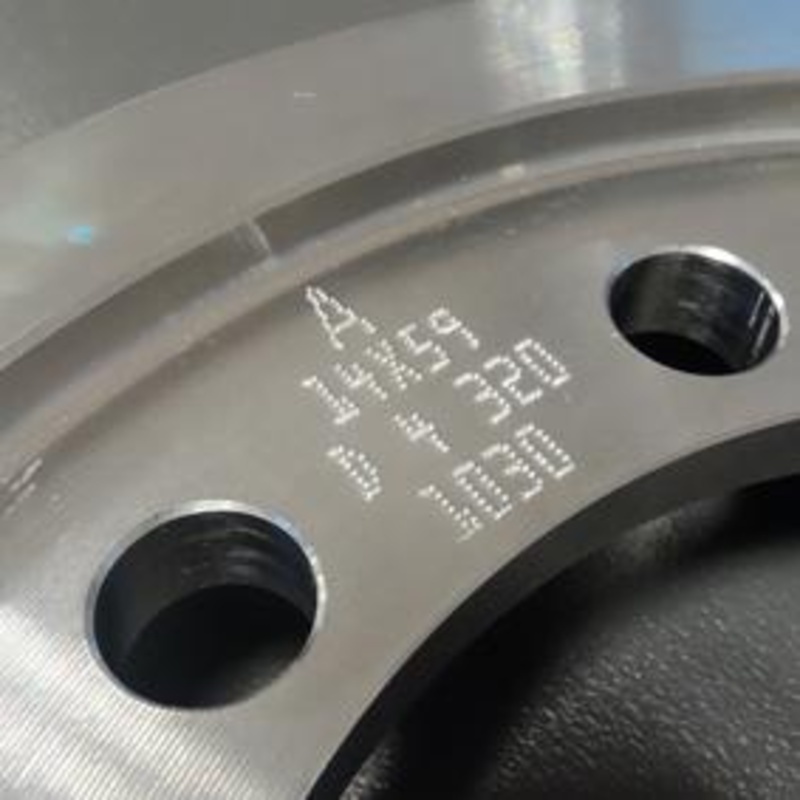

- Capable of marking plastics and hardened steel (up to 62 HRC),
- Requires minimal maintenance and consumables,
- The EC1 software is easy to use with an industrial membrane keyboard and a large color display.
The EC1 Column-Mounted Dot Peen Marking Machine is ideal for marking small to medium-sized parts, offering fast operation, consistent quality, and reliable accuracy, making it a highly efficient marking solution.
Contact
(+84)-964-658-958
Advantage
The EC1 Column-Mounted Dot Peen Marking Machine offers low initial investment, no consumables, and no maintenance required
Uses an electromagnetic stylus, eliminating the need for a separate pneumatic system and can be combined with optional marking devices (D-axis or plate)
The EC1 software enables fast and easy creation of all marking files directly on the controller
EC1 Column-Mounted Dot Peen Marking Machine
TECHNICAL SPECIFICATIONS – EC1 COLUMN-MOUNTED DOT PEEN MARKING MACHINE
Marking Unit:
- Marking Window: 120 x 100 mm
- Weight: 16 kg
- Stylus Material: Carbide
- Column Stroke: 280 mm

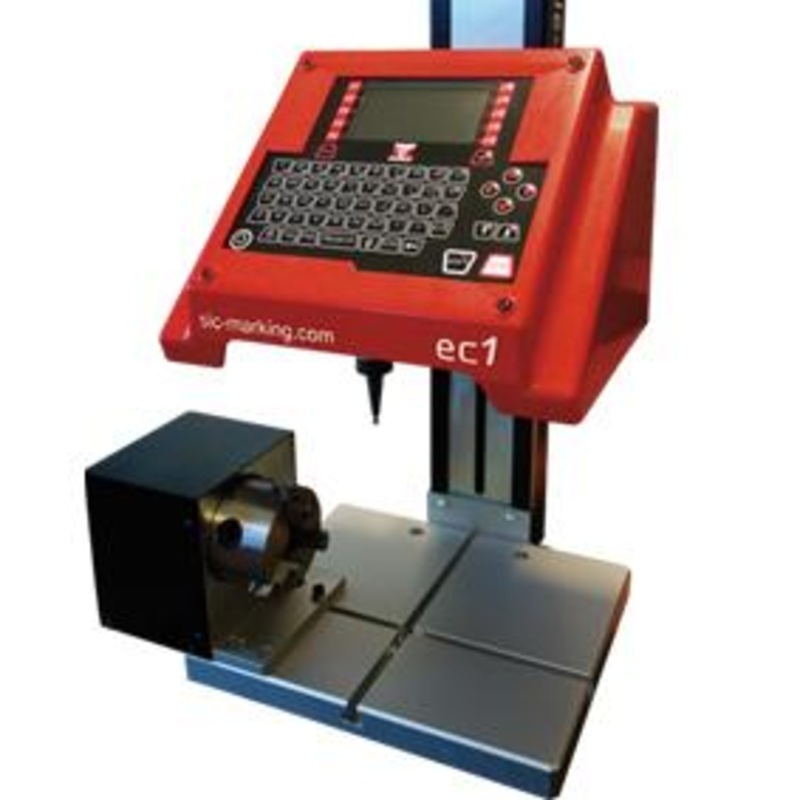

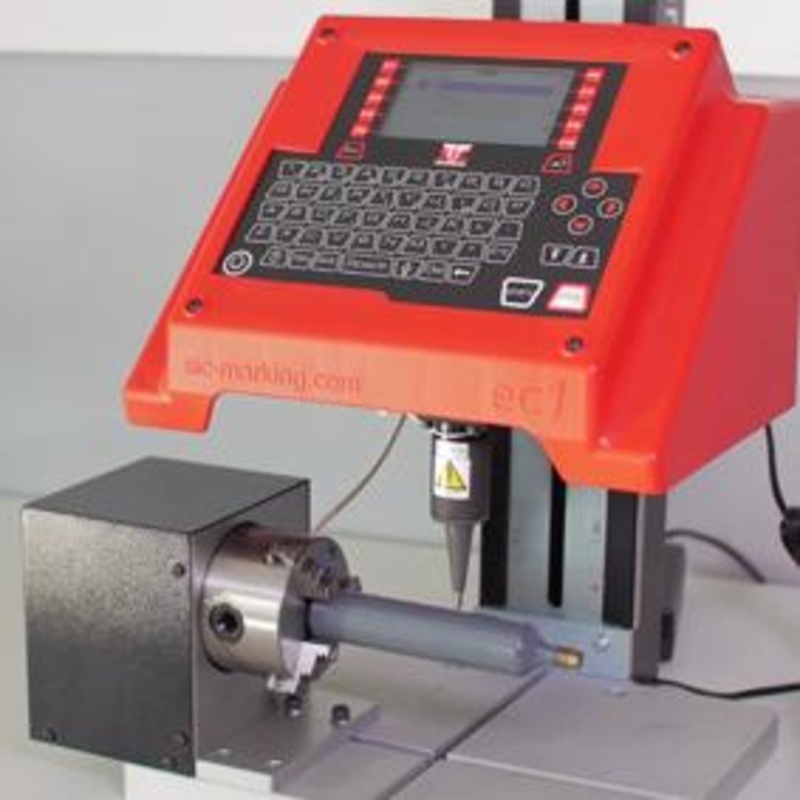

- Rotary Axis (optional): For parts up to 150 mm
Controller:
- Fully integrated EC1 controller with easy-to-configure and user-friendly software. It can also be programmed a PC via SICTOOLS, compatible with all Windows-based systems
- Display: LCD screen 480 x 272 pixels
- Keyboard: QWERTY membrane keyboard
- Power: 100 W
- Input Power: 110 V or 220 V (50–60 Hz)
External Connections:
- Connectivity: Optional RS232 board, USB
- PC Software: Create, store, and transfer marking files via PC or USB
Software:
- File Capacity: More than 1,000 files
- Internal Memory: >100 MB

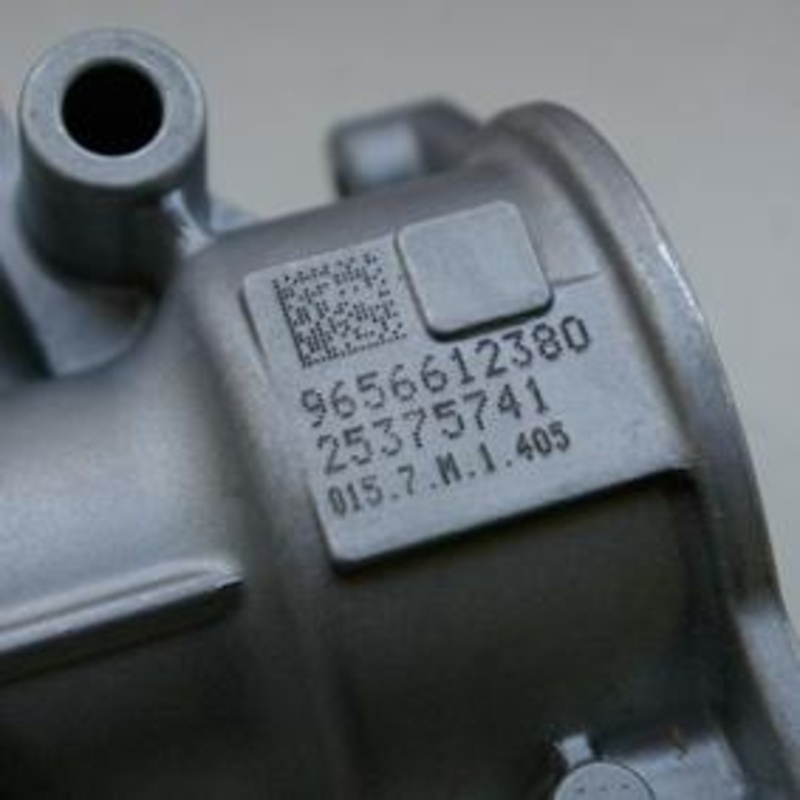

- Marking Content: Alphanumeric, Data Matrix, Serial Numbers, Codes
- Logo: Created via PC software or uploaded via USB
- Data Matrix: Up to 348 characters (48 x 48 dots)
- Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 5x67
- Marking Styles: Angular, Radial, Inverse, Mirror
- Character Height: 0.1 to 99 mm
- Marking Depth: Up to 0.3 mm or more depending on material
- Dot Spacing: 0.22 mm
- Security: 2-level password protection
- History Tracking: Anti-duplication
- Available Languages: 15
Optional Accessories:
- Maintenance kit
- Control panel
- D-axis
