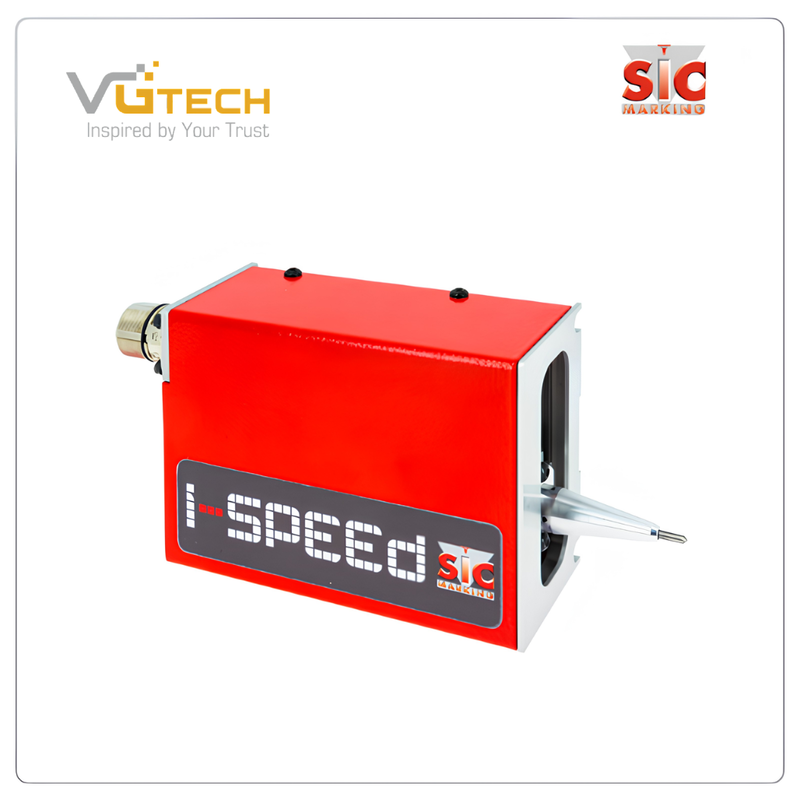

I-SPEED High-Speed Dot Peen Marking Machine

TECHNICAL SPECIFICATIONS – I-SPEED HIGH-SPEED DOT PEEN MARKING MACHINE

Marking Unit:

• Marking Window: 50 x 20 mm
• Dimensions: 218 x 107 x 62 mm
• Weight: 2.2 kg
• Stylus Material: Tungsten Carbide 60 mm
• Control Cable Length: 5 m (extendable up to 15 m)
• Air Pressure: 6 bar

Controller:

• The I-SPEED High-Speed Dot Peen Marking Machine uses the standard E10 Controller SIC Marking, delivering advanced features and high performance

External Connections:

• Connectivity: RS232, USB
• I/O Ports: 5
• Output Power: 5V–0.5A and 24V–0.5A
• PC Software: Create, store, and transfer marking files via PC or USB

Software:

• File Capacity: More than 1,000 files
• Internal Memory: 100 MB
• Marking Content: Alphanumeric, Data Matrix, Serial Numbers, Codes
• Logo: Created via PC software or uploaded via USB
• Data Matrix: Up to 348 characters (48 x 48 dots)
• Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 4x6
• Marking Styles: Angular, Radial, Inverse, Mirror
• Character Height: 0.1 to 20 mm
• Marking Depth: Up to 0.3 mm or more depending on material
• Dot Spacing: 0.05 mm
• Security: Password protection (1 level)
• History Tracking: Overwrite protection
• Available Languages: 15

Optional Accessories:

• Maintenance kit
• Automatic Z-axis with large stroke 50 to 250 mm

WHY CHOOSE VGTECH

VGTECH (Viet Global Trading & Technology Co., Ltd.) proudly provides leading marking solutions SIC Marking in Vietnam

• Genuine products: Direct import with full CO/CQ documentation
• Competitive pricing: Attractive policies for B2B customers and projects
• Professional technical service: Installation, training, and on-site support in Hai Duong, Hai Phong, Bac Ninh, and surrounding areas
• Free sample marking: Send your parts for real marking tests and evaluation

CONTACT FOR CONSULTATION AND QUOTATION

VIET GLOBAL TRADING AND TECHNOLOGY CO., LTD
Address: Floor 5, Hoa Xa Building, 360 Nguyen Luong Bang Street, Le Thanh Nghi Ward, Hai Phong City, Vietnam

Phone: (+84) 220-6-529-526 | (+84) 964-658-958
Email: vgtechcom@vgtech.com.vn
Website: https://vgtech.com.vn/
