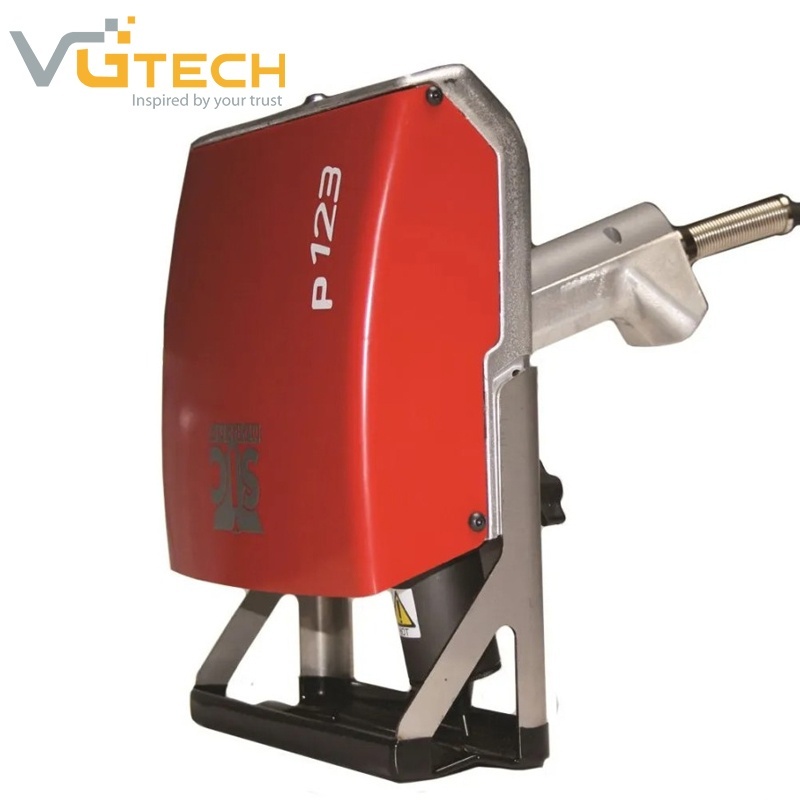

E1 P123 Handheld Dot Peen Marking Machine

TECHNICAL SPECIFICATIONS – E1 P123 HANDHELD DOT PEEN MARKING MACHINE

Marking Unit:

• Marking Window: 120 x 40 mm
• Dimensions: 317 x 217 x 218 mm
• Weight: 3.4 kg
• Stylus Material: Carbide 60 mm
• Control Cable Length: 3 m
• Positioning Device: Front V-shaped support and anti-slip surface
• Positioning Setting: 4-point positioning feet

E1 Controller:

• The E1 Controller is specifically designed for the E1 P123, offering extended connectivity for efficient data exchange with PC systems
• Compact and robust design with solid aluminum housing and integrated handle, weighing only 2 kg for high mobility
• HD color display and integrated membrane keyboard with a simple, user-friendly operating system, allowing full data creation and management directly on the controller
• Dimensions: 301 x 121 x 87 mm
• Weight: 2 kg
• Display: HD screen 95 x 54 pixels
• Keyboard: Membrane keypad
• Power: 100 W
• Input Power: Single-phase, 100 – 240 V AC, 50 – 60 Hz
• Operating Temperature: 5 – 40 °C

External Connections:

• Connectivity: USB and jack

Software:

• File Capacity: More than 20,000 files
• Internal Memory: 100 MB
• Marking Content: Alphanumeric, Data Matrix, Serial Numbers, Codes
• Logo: Created via PC software or uploaded via USB
• Data Matrix: Up to 348 characters (48 x 48 dots)
• Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 4x6
• Marking Styles: Angular, Radial, Inverse, Mirror
• Character Height: Minimum 1 mm
• Marking Speed: Up to 2.5 characters per second
• Marking Depth: Up to 0.3 mm
• Dot Spacing: 0.05 mm
• Marking Force Adjustment: 9 levels
• Available Languages: 17

Optional Accessories:

• Maintenance kit
• Support trolley
• Hanging hook and fixing system
• Magnetic clamp
• Control panel

WHY CHOOSE E1 P123 HANDHELD DOT PEEN MARKING MACHINE

The E1 P123 Handheld Dot Peen Marking Machine enables precise dot peen marking directly on any material. Its lightweight and compact structure make it ideal for marking heavy or oversized components

• Operates using electromagnetic pulses to drive the tungsten carbide stylus the material surface
• High-quality and deep marking, especially suitable for 2D Data Matrix code marking
• Large marking window up to 120 x 40 mm allows clear and readable large characters
• The E1 P123 features a robust yet ergonomic design, ensuring optimal performance in applications requiring mobility and flexibility
