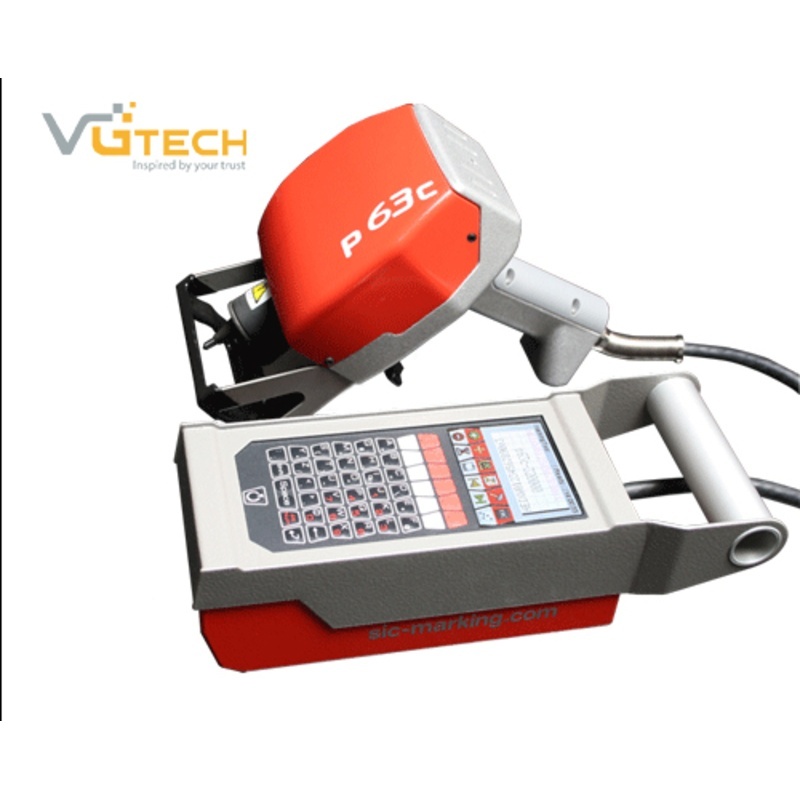

E1 P63 Handheld Dot Peen Marking Machine

TECHNICAL SPECIFICATIONS – E1 P63 HANDHELD DOT PEEN MARKING MACHINE

Marking Unit:

• Marking Window: 60 x 25 mm
• Dimensions: 215 x 135 x 203 mm
• Weight: 2.6 kg
• Stylus Material: Carbide 60 mm
• Control Cable Length: 3 m
• Positioning Device: Front V-shaped support and anti-slip surface
• Positioning Setting: 4-point positioning feet

E1 Controller:

• The E1 Controller is specifically designed for the E1 P63, offering extended connectivity for efficient data exchange with PC systems
• Compact and robust design with solid aluminum housing and integrated handle, weighing only 2 kg for high mobility
• HD color display and integrated membrane keyboard with a simple, user-friendly operating system, allowing full data creation and management directly on the controller
• Dimensions: 301 x 121 x 87 mm
• Weight: 2 kg
• Display: HD screen 95 x 54 pixels
• Keyboard: Membrane keypad
• Power: 100 W
• Input Power: Single-phase, 100 – 240 V AC, 50 – 60 Hz
• Operating Temperature: 5 – 40 °C

External Connections:

• Connectivity: USB and jack

Software:

• File Capacity: More than 20,000 files
• Internal Memory: 100 MB
• Marking Content: Alphanumeric, Data Matrix, Serial Numbers, Codes
• Logo: Created via PC software or uploaded via USB
• Data Matrix: Up to 348 characters (48 x 48 dots)
• Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 4x6
• Marking Styles: Angular, Radial, Inverse, Mirror
• Character Height: Minimum 1 mm
• Marking Speed: Up to 2.5 characters per second
• Marking Depth: Up to 0.3 mm
• Dot Spacing: 0.05 mm
• Marking Force Adjustment: 9 levels
• Available Languages: 17

Optional Accessories:

• Maintenance kit
• Wireless barcode scanner

WHY CHOOSE VGTECH

VGTECH (Viet Global Trading & Technology Co., Ltd.) proudly provides leading marking solutions SIC Marking in Vietnam

• Genuine products: Direct import with full CO/CQ documentation
• Competitive pricing: Attractive policies for B2B customers and projects
• Professional technical service: Installation, training, and on-site support in Hai Duong, Hai Phong, Bac Ninh, and surrounding areas
• Free sample marking: Send your parts for real marking tests and evaluation
