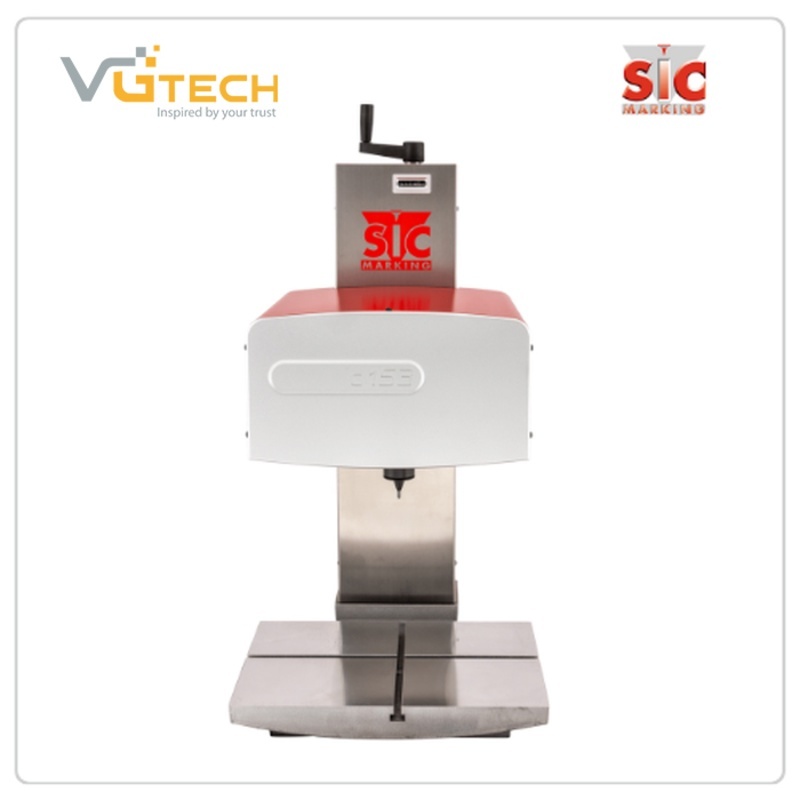

E10 C153 Column-Mounted Dot Peen Marking Machine

TECHNICAL SPECIFICATIONS – E10 C153 COLUMN-MOUNTED DOT PEEN MARKING MACHINE

Marking Unit:

• Marking Window: 160 x 100 mm
• Dimensions: 385 x 350 x 636 mm
• Weight: 30 kg
• Stylus Material: Carbide 60 mm
• Z-axis Stroke: Up to 250 mm
• Z-axis Speed: Up to 30 mm/s

E10 Controller:

• The E10 controller provides a direct and user-friendly interface, with a large graphic display and waterproof membrane-protected QWERTY keyboard, ideal for industrial environments
• Marking files can be uploaded/downloaded via USB or created and edited directly on the machine
• The comprehensive E10 software package enables linear, angular, radial, and mirror marking, with optional upgrades for deep marking
• Dimensions: 322 x 380 x 112 mm
• Weight: 5 kg
• Display: LCD screen 480 x 272 pixels
• Keyboard: QWERTY membrane keyboard
• Power: 300 W
• Input Power: Single-phase, 85 – 260 V AC, 50 – 60 Hz
• Axes Control: 2 axes (expandable to 3–4 axes)
• Operating Temperature: 5 – 40 °C

External Connections:

• Connectivity: Optional RS232, RS422, USB x2, RS485, Profibus, Ethernet
• I/O Ports: 5
• Inputs/Outputs: 16
• Output Power: 5V–0.5A and 24V–0.5A
• PC Software: Create, store, and transfer marking files via PC or USB

Software:

• File Capacity: More than 2,000 files
• Internal Memory: 7110 KB
• Marking Content: Alphanumeric, Data Matrix, Serial Numbers, Codes
• Logo: Created via PC software or uploaded via USB
• Data Matrix: Up to 348 characters (48 x 48 dots)
• Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 4x6
• Marking Styles: Angular, Radial, Inverse, Mirror
• Character Height: 0.1 to 99 mm
• Marking Depth: Up to 0.5 mm or more depending on material
• Dot Spacing: 0.05 mm
• Security: 3-level password protection
• History Traceability: Password-protected
• Available Languages: 17

Optional Accessories:

• Maintenance kit
• Control panel
• Automatic Z-axis (for parts 50–250 mm)

WHY CHOOSE E10 C153 COLUMN-MOUNTED DOT PEEN MARKING MACHINE

• Industrial durability: Cast aluminum base and high-strength carbide stylus ensure stable operation in harsh factory environments
• High-quality Datamatrix marking: 0.05 mm dot resolution enables high-grade QR and Datamatrix codes, easily readable by scanners
• Multi-level security: 3-level password system ensures strict control over marking operations
• Fast setup: Quick file transfer via USB or direct editing on the E10 controller within seconds

WHY CHOOSE VGTECH

VGTECH (Viet Global Trading & Technology Co., Ltd.) proudly provides leading marking solutions SIC Marking in Vietnam

• Genuine products: Direct import with full CO/CQ documentation
• Competitive pricing: Attractive policies for B2B customers and projects
• Professional technical service: Installation, training, and on-site support in Hai Duong, Hai Phong, Bac Ninh, and surrounding areas
• Free sample marking: Send your parts for real marking tests and evaluation
