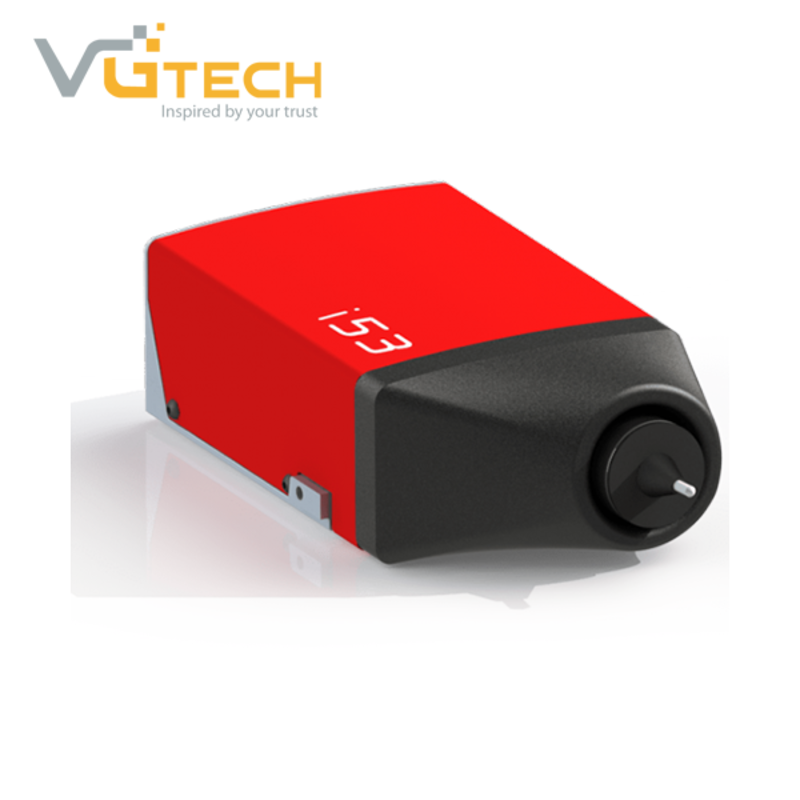

E10 i53 Integrated Dot Peen Marking Machine
5 (1 đánh giá)
The E10 i53 Dot Peen Marking Machine is a high-precision marking solution designed to meet traceability and part identification requirements, improving product quality, optimizing production processes, and reducing manufacturing costs
- Compact and highly flexible for easy integration production lines
- Compliant with international standards, designed to meet the most demanding requirements
- Powerful: Marking depth up to 0.5 mm for excellent marking quality
- Easy connectivity: The E10 controller offers advanced communication capabilities on the market
- The E10 i53 Dot Peen Marking Machine marks all types of materials with ease, featuring a robust and durable design for long-term operation in industrial environments
Contact
(+84)-964-658-958
Advantage
Outstanding performance with high speed, tolerance to variations in distance between stylus and part, and powerful integrated software
The E10R i53 is designed for intensive industrial use
Fully adjustable dot position and impact force for optimal marking quality
E10 i53 Integrated Dot Peen Marking Machine
TECHNICAL SPECIFICATIONS – E10 i53 DOT PEEN MARKING MACHINE
Marking Unit:
- Marking Window: 50 x 20 mm
- Dimensions: 250 x 130 x 70 mm
- Weight: 2.6 kg
- Stylus Material: Carbide 60 mm
- Control Cable Length: 5 m (extendable up to 15 m)
- Housing Protection: Protective leather cover
E10 Controller:
- Dimensions: 322 x 380 x 112 mm
- Weight: 5 kg
- Display: LCD screen 480 x 272 pixels
- Keyboard: QWERTY membrane keyboard
- Power: 300 W
- Input Power: Single-phase, 85 – 260 V AC, 50 – 60 Hz
- Axes Control: 2 axes (expandable to 3–4 axes)
- Operating Temperature: 5 – 40 °C
External Connections:
- Connectivity: RS232, RS422, USB, RS485 Profibus, TCP/IP, Ethernet/IP
- I/O Ports: 16
- Output Power: 5V–0.5A and 24V–0.5A
- External Keyboard: USB connection
- PC Software: Create, store, and transfer marking files via PC or USB
- Communication Cards: Ethernet/TCP, Ethernet/IP, Profibus, Profinet
Software:
- File Capacity: More than 2,000 files
- Internal Memory: 7110 MB
- Marking Content: Alphanumeric, Data Matrix, Serial Numbers, Codes
- Logo: Created via PC software or uploaded via USB
- Data Matrix: Up to 348 characters (48 x 48 dots)
- Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 4x6
- Marking Styles: Angular, Radial, Inverse, Mirror
- Character Height: 0.1 to 99 mm
- Marking Depth: Up to 0.5 mm or more depending on material
- Marking Force Adjustment: 9 levels
- Work Shifts: 10 shifts
- Security: 2-level password protection
- History Export: Excel file
- Maintenance Support: Automatic error notification
- Available Languages: 17
Optional Accessories:
- Maintenance kit
- Automatic Z-axis (for parts 50–250 mm)
