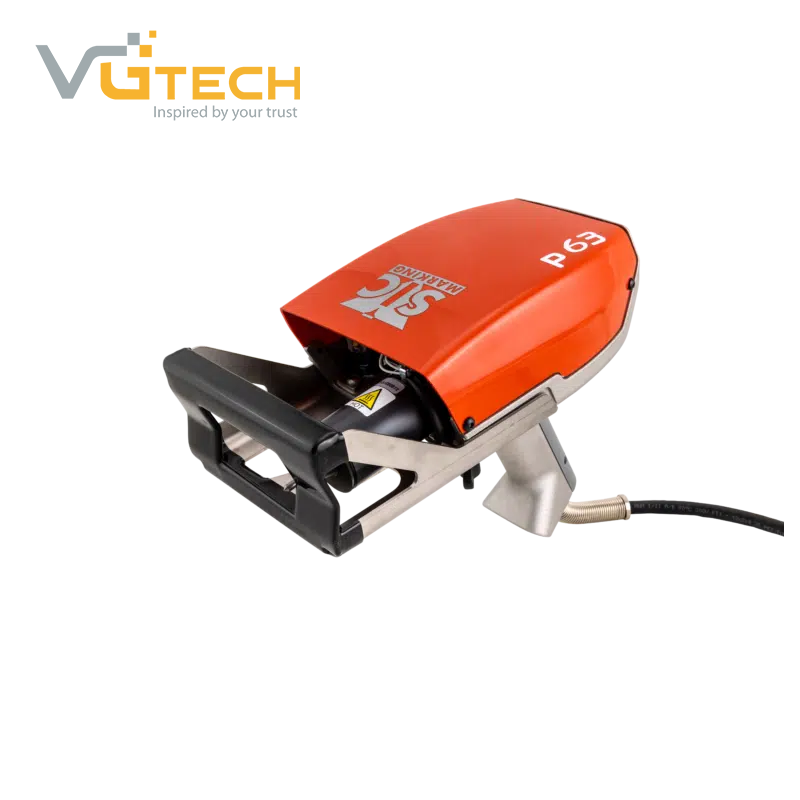

E10 P63 Handheld Dot Peen Marking Machine

TECHNICAL SPECIFICATIONS – E10 P63 HANDHELD DOT PEEN MARKING MACHINE

Marking Unit:

• Marking Window: 60 x 25 mm
• Dimensions: 260 x 139 x 211 mm
• Weight: 3.2 kg
• Stylus Material: Carbide 60 mm
• Control Cable Length: 7.5 m (extendable up to 15 m)
• Positioning Device: Front V-shaped support and anti-slip surface
• Air Pressure: 6 bar
• Lighting System: LED lighting
• Positioning Setting: Front adjustment system

E10 Controller:

• Dimensions: 322 x 380 x 112 mm
• Weight: 5 kg
• Display: LCD screen 480 x 272 pixels
• Keyboard: QWERTY membrane keyboard
• Power: 300 W
• Input Power: Single-phase, 85 – 260 V AC, 50 – 60 Hz
• Axes Control: 2 axes (expandable to 3–4 axes)
• Operating Temperature: 5 – 40 °C

External Connections:

• Connectivity: RS232, RS422, USB, RS485 Profibus, TCP/IP, Ethernet/IP
• I/O Ports: 16
• Output Power: 5V–0.5A and 24V–0.5A
• External Keyboard: USB connection
• PC Software: Create, store, and transfer marking files via PC or USB
• Communication Cards: Ethernet/TCP, Ethernet/IP, Profibus, Profinet

Software:

• File Capacity: More than 2,000 files
• Internal Memory: 7110 MB
• Marking Content: Alphanumeric, Data Matrix, Serial Numbers, Codes
• Logo: Created via PC software or uploaded via USB
• Data Matrix: Up to 348 characters (48 x 48 dots)
• Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 4x6
• Marking Styles: Angular, Radial, Inverse, Mirror
• Character Height: 0.1 to 99 mm
• Marking Depth: Up to 0.5 mm or more depending on material
• Marking Force Adjustment: 9 levels
• Work Shifts: 10 shifts
• Security: 2-level password protection
• History Export: Excel file
• Maintenance Support: Automatic error notification
• Available Languages: 17

Optional Accessories:

• Maintenance kit
• Support trolley
• Hanging hook and fixing system
• Magnetic clamp
• Column and base for conversion to fixed station
