i104 EASY Laser Marking Machine
5 (1 đánh giá)
i104 EASY Laser Marking Machine
The i104 EASY is designed to boost productivity in dedicated marking and traceability workstations—just as simple as its name suggests:
- COST-EFFECTIVE: Meets over 80% of marking needs at a much lower cost compared to similar machines
- VERSATILE: Delivers excellent marking quality on various materials and surfaces such as plastics, aluminum, copper, etc.
- USER-FRIENDLY: Easily connects with most industrial protocols and features an intuitive interface
- COMPACT: Lightweight integrated head (only 5 kg), easy to install
The i104 EASY marking head is engineered for high-speed operation in any industrial environment, making it an optimal choice for customers seeking efficiency and reliability.
Contact
(+84)-964-658-958
Advantage
.jpg)

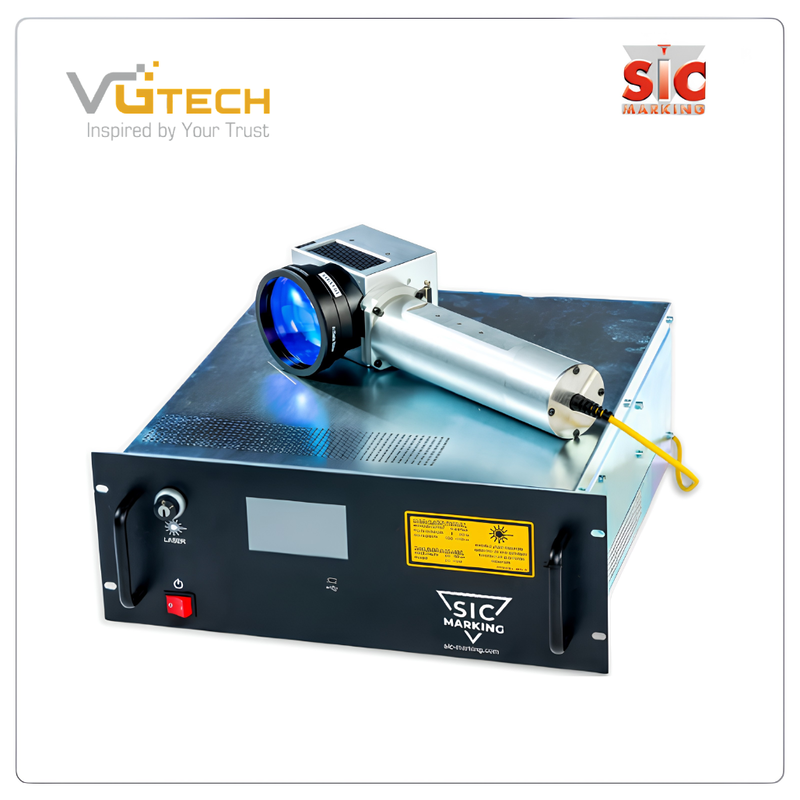

Its compact design makes the laser marking head easy to integrate any production line or robotic cell.
The i104 Easy laser head delivers precise, high-resolution marking of logos, alphanumeric codes, as well as 1D, 2D, and DataMatrix codes.
i104 EASY Laser Marking Machine
GENERAL SPECIFICATIONS – i104 EASY LASER MARKING MACHINE
Mechanical Specifications:
- Marking Window: 60×60 mm / 100×100 mm / 170×170 mm / 220×220 mm / 300×300 mm
- Focal Distance: 160 mm
- Marking Head Weight: 5 kg
- Controller Weight: 19 kg
- Safety Class: Class 4 (EN 60825-1)
- Control Mode: Standalone (no PC required)
Laser Source:
- Type: Pulsed Ytterbium Fiber Laser
- Operating Mode: Pulsed (30 – 60 kHz)
- Wavelength: 1064 nm
- Laser Cable Length: 3 m
- Average Power: 20W / 30W
- Peak Power: 7 kW
- Focus: Integrated in marking head
- Cooling System: Air-cooled
Software:
The i104 EASY operates in standalone mode and connects directly to the production PLC.
Files can be created and edited any Windows PC using SIC Laser Advanced software, allowing:
- Optimization of marking time and productivity
- Adjustment of speed, pulse frequency, and laser power
- Improved marking contrast and quality
Communication Protocols:
- RS232 / Ethernet interfaces
- Profibus, Profinet, Ethernet/IP
- Basic I/O for cycle time management
- Test COM software
Optional Accessories:
- 3D marking module (automatic surface detection)
- Automatic Z-axis (for parts 50–250 mm)
- Fume extraction system
- Integrated vision system for code verification
- Industrial communication cards
WHY CHOOSE VGTECH
VGTECH (Viet Global Trading & Technology Co., Ltd.) proudly provides leading marking solutions SIC Marking in Vietnam
- Genuine products: Direct import with full CO/CQ documentation
- Competitive pricing: Attractive policies for B2B customers and projects
- Professional technical service: Installation, training, and on-site support in Hai Duong, Hai Phong, Bac Ninh, and surrounding areas
- Free sample marking: Send your parts for real marking tests and evaluation
CONTACT FOR CONSULTATION AND QUOTATION
VIET GLOBAL TRADING AND TECHNOLOGY CO., LTD
Address: Floor 5, Hoa Xa Building, 360 Nguyen Luong Bang Street, Le Thanh Nghi Ward, Hai Phong City, Vietnam
Phone: (+84) 220-6-529-526 | (+84) 964-658-958
Email: vgtechcom@vgtech.com.vn
Website: https://vgtech.com.vn/
