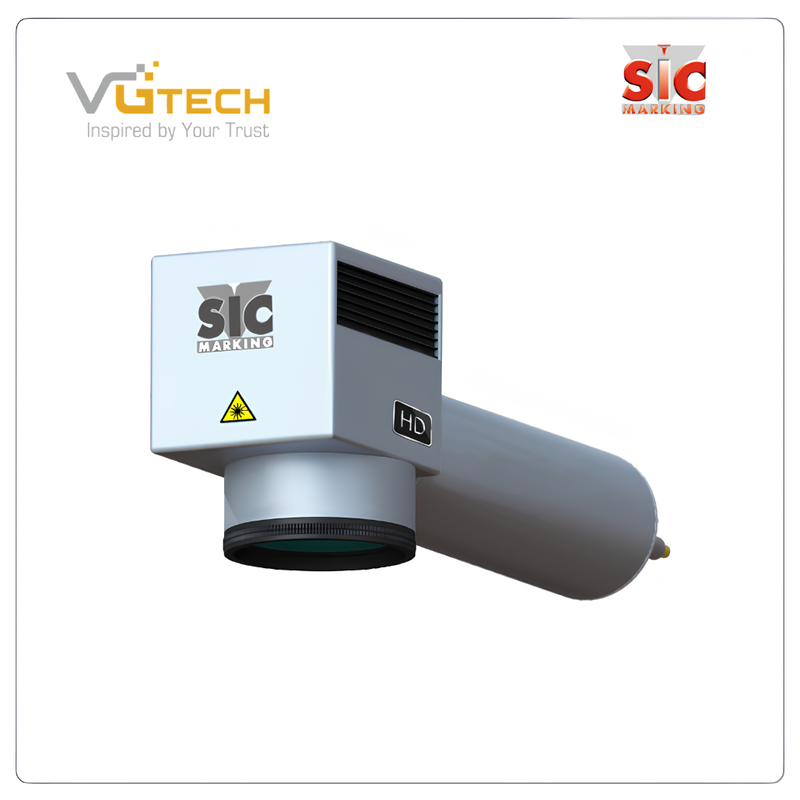

i104 HD Laser Marking Machine
5 (1 đánh giá)
i104 HD Laser Marking Machine
The i104 HD is a next-generation marking solution—highly efficient, durable, and easy to operate.
To meet ISO quality requirements, product traceability is essential, and the i104 HD provides the ideal solution.
- Advanced Technology: Equipped with a Ytterbium-doped MOPA fiber laser (Master Oscillator Power Amplifier)
- High Performance: Enables high-frequency marking on all materials (steel, aluminum, stainless steel, titanium, plastics, etc.)
- Industrial Reliability: Operates efficiently in any industrial environment
- Versatile: Supports both 2D and 3D marking with optional accessories
This is why the i104 HD integrated laser marking system is widely used by manufacturers to automate traceability processes and ensure full production control.
Contact
(+84)-964-658-958
Advantage
i104 HD Laser Marking Machine – High Definition Marking
Its compact design makes the laser marking head easy to integrate any production line or robotic cell.
.png)
The i104 HD delivers high-contrast marking on all types of materials (steel, aluminum, stainless steel, titanium, plastics, etc.).
.jpg)
.jpg)
i104 HD Laser Marking Machine
TECHNICAL SPECIFICATIONS – i104 HD LASER MARKING MACHINE
Mechanical Specifications:
- Marking Window: 60×60 mm / 100×100 mm / 170×170 mm / 220×220 mm / 300×300 mm
- Focal Distance: 160 mm
- Marking Head Weight: 5 kg
- Controller Weight: 19 kg
- Safety Class: Class 4 (EN 60825-1)
- Control Mode: Standalone (no PC required)
Laser Source:
- Type: Pulsed Ytterbium Fiber Laser (MOPA)
- Operating Mode: Pulsed (10 – 1000 kHz)
- Pulse Duration: 2 ns to 200 ns
- Wavelength: 1064 nm
- Laser Cable Length: 3 m
- Average Power: 20W
- Peak Power: 7 kW
- Focus: Integrated in marking head
- Cooling System: Air-cooled
Software:
The i104 HD operates in standalone mode and connects directly to the production PLC.
Using SIC Laser Advanced software (Windows), users can:
- Create and edit marking files
- Optimize marking time and productivity
- Adjust speed, pulse frequency, and laser power
- Improve marking contrast and quality
Communication Protocols:
- RS232 / Ethernet interfaces
- Profibus, Profinet, Ethernet/IP
- Basic I/O for cycle time management
- Test COM software
Optional Accessories:
- 3D marking module (automatic surface detection)
- Automatic Z-axis (for parts 50–250 mm)
- Fume extraction system
- Integrated vision system for code verification
- Industrial communication cards
WHY CHOOSE VGTECH
VGTECH (Viet Global Trading & Technology Co., Ltd.) proudly provides leading marking solutions SIC Marking in Vietnam
- Genuine products: Direct import with full CO/CQ documentation
- Competitive pricing: Attractive policies for B2B customers and projects
- Professional technical service: Installation, training, and on-site support in Hai Duong, Hai Phong, Bac Ninh, and surrounding areas
- Free sample marking: Send your parts for real marking tests and evaluation
CONTACT FOR CONSULTATION AND QUOTATION
VIET GLOBAL TRADING AND TECHNOLOGY CO., LTD
Address: Floor 5, Hoa Xa Building, 360 Nguyen Luong Bang Street, Le Thanh Nghi Ward, Hai Phong City, Vietnam
Phone: (+84) 220-6-529-526 | (+84) 964-658-958
Email: vgtechcom@vgtech.com.vn
Website: https://vgtech.com.vn/
