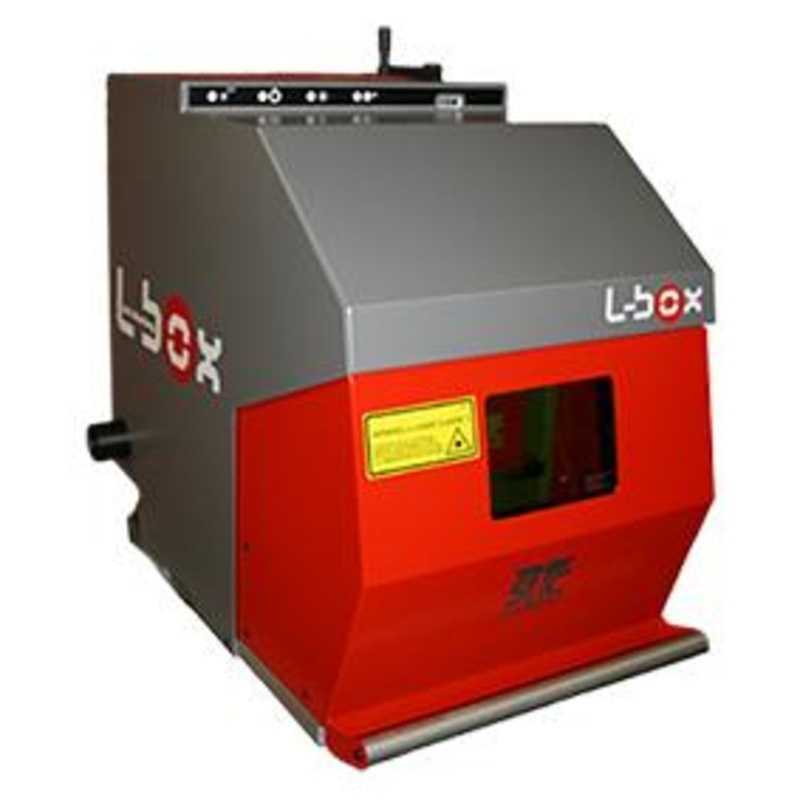

L-BOX Integrated Laser Marking System
5 (1 đánh giá)
The SIC Marking L-BOX Laser Marking System is specifically designed to meet the demanding pace of industrial production environments.
- LARGE CAPACITY: Spacious working area allows easy marking of large and bulky parts
- POWERFUL: High-performance fiber laser source up to 50W delivers fast, accurate, and efficient marking results
- USER-FRIENDLY: Intuitive software interface designed for easy operation
- RELIABLE: Durable marking head with over 100,000 hours of maintenance-free operation
- SAFE: Class 4 laser safety protection compliant with EN60825-1 standards, with optional dust extraction system to help maintain a clean working environment

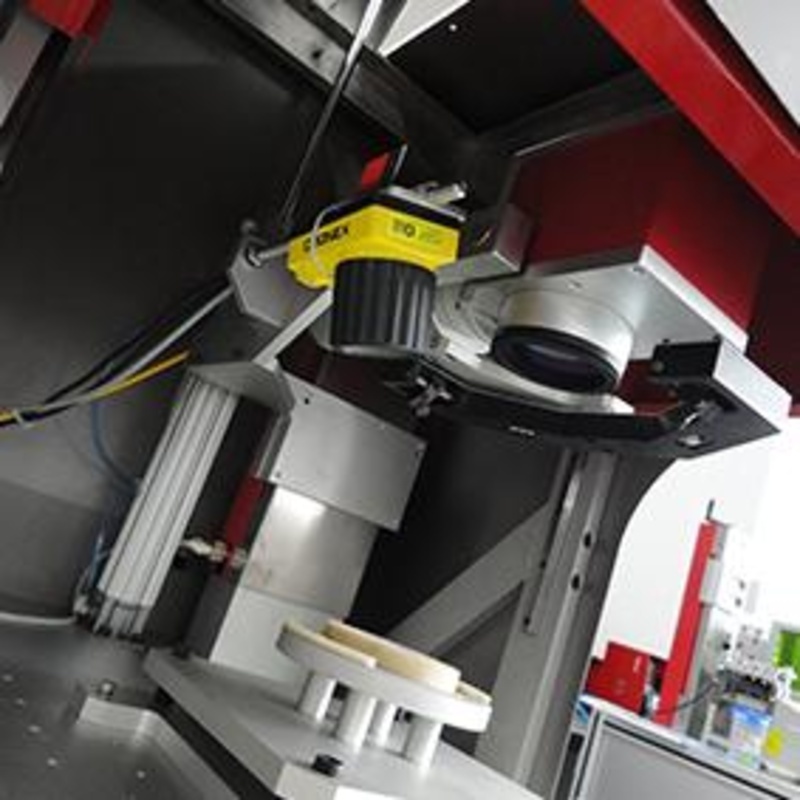

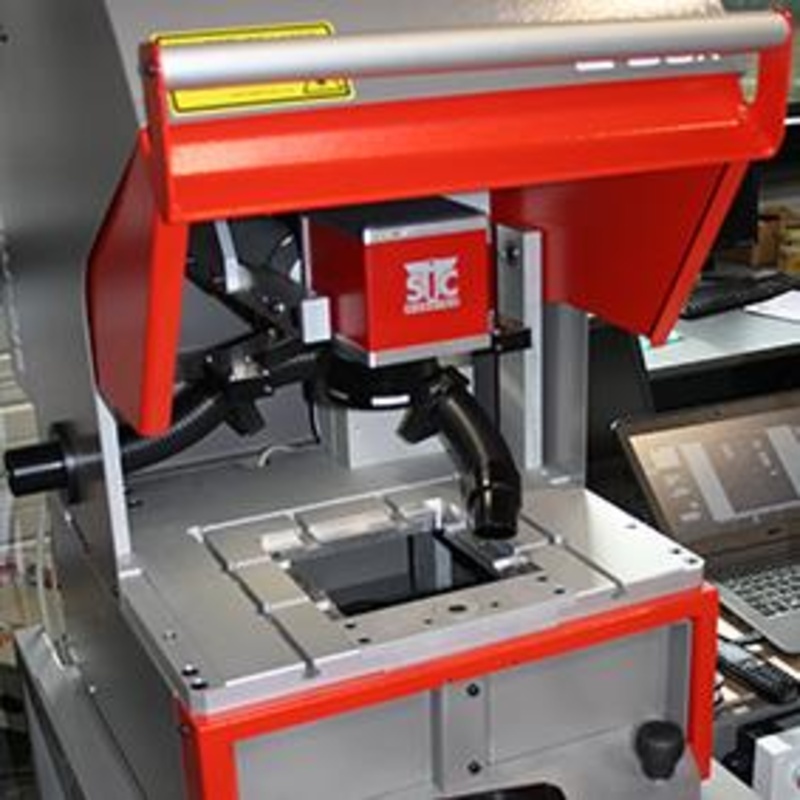

The integrated L-BOX laser system is designed with a column-mounted marking head and a rack-mounted fiber laser controller configuration.
Contact
(+84)-964-658-958
Advantage
L-BOX Laser Marking System – The Ideal Solution for Industrial Laser Marking

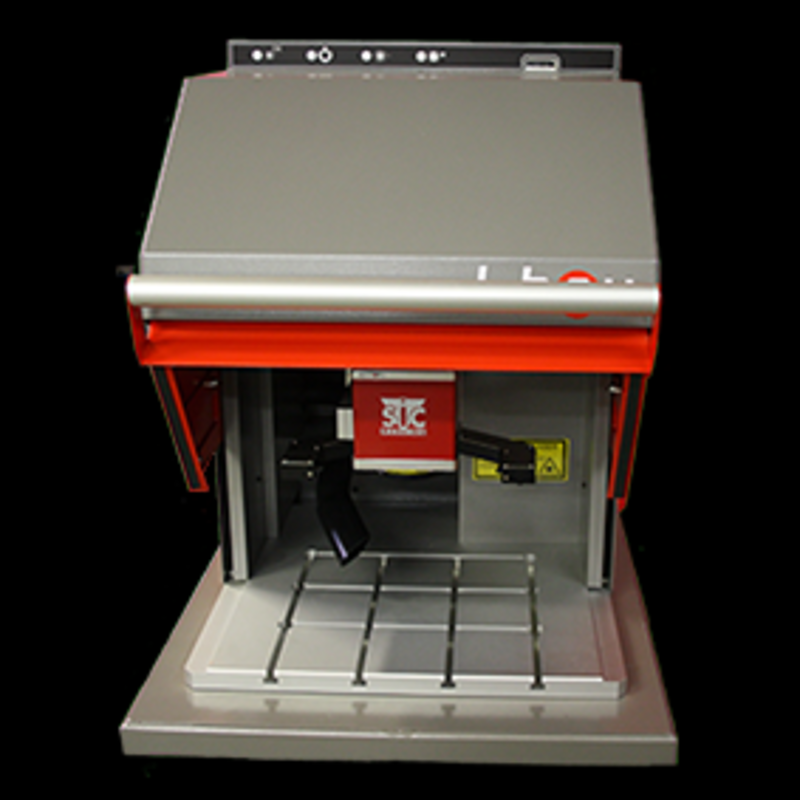

The robust 100% solid steel construction of the L-BOX Laser Marking System perfectly combines durability with a compact footprint and modern industrial design.

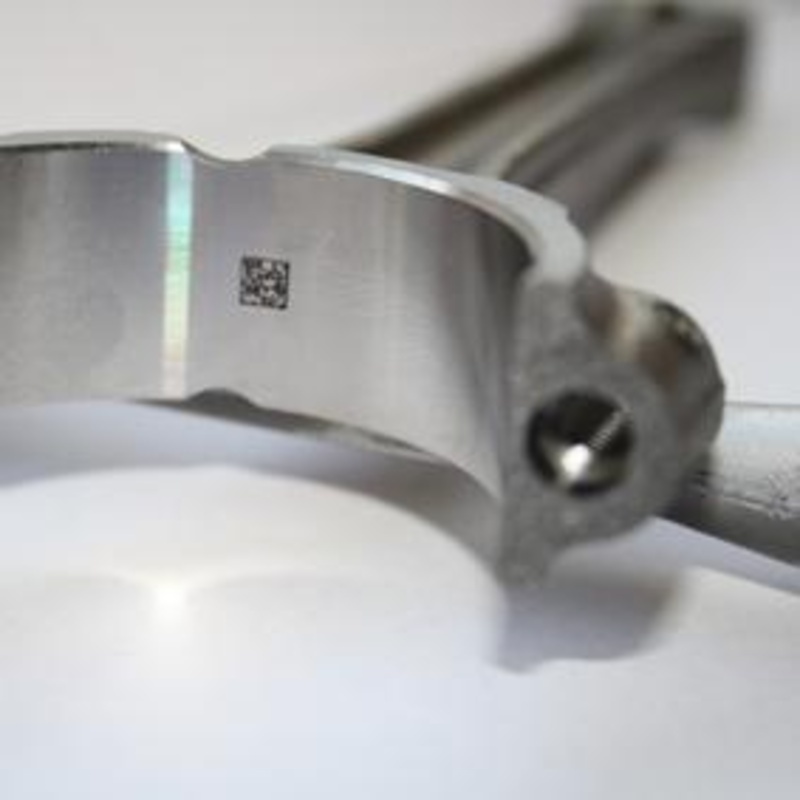

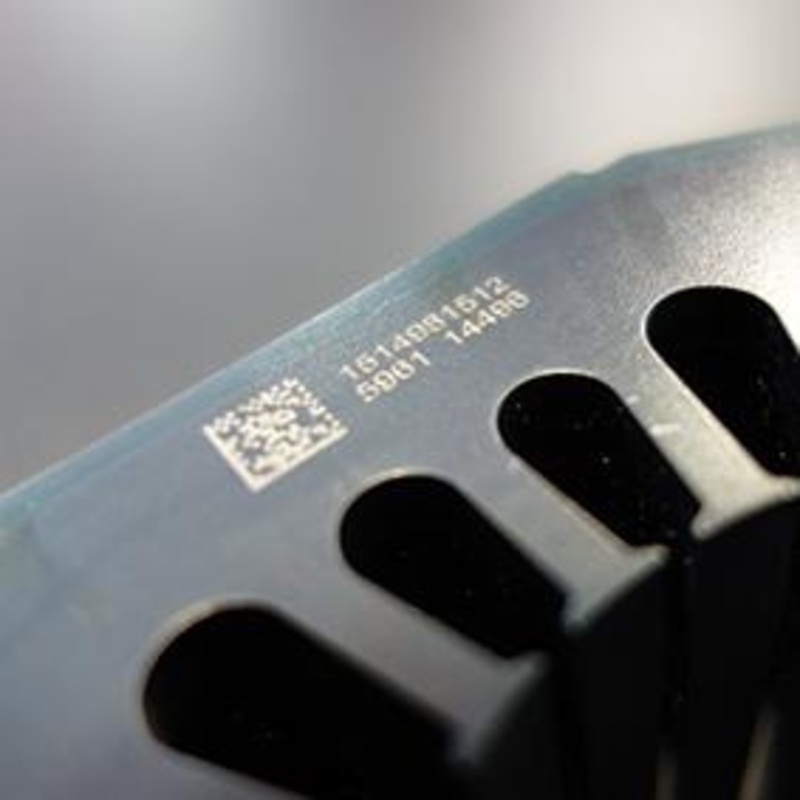

Delivering consistent, high-quality marking performance, the fiber laser source is capable of marking on virtually all types of materials.
L-BOX Integrated Laser Marking System
GENERAL FEATURES OF THE L-BOX LASER MARKING SYSTEM
MECHANICAL SPECIFICATIONS
- Marking window: 60 × 60 mm / 100 × 100 mm / 170 × 170 mm
- Weight: 40 kg
- Maximum part dimensions: Height up to 235 mm, Length up to 500 mm
- Safety protection: Fully enclosed Class 1 safety housing compliant with European standard EN 60825-1
- Control mode: PC connection
LASER SOURCE SPECIFICATIONS
- Laser source: Pulsed Ytterbium Fiber Laser
- Operating mode: Pulsed (20 – 80 kHz)
- Wavelength: 1064 nm
- Laser cable length: 3 m
- Average output power: 10W, 20W, or 50W
- Peak power: 10 kW
- Focus system: Integrated the marking head
- Cooling system: Air cooling
OPERATING SOFTWARE

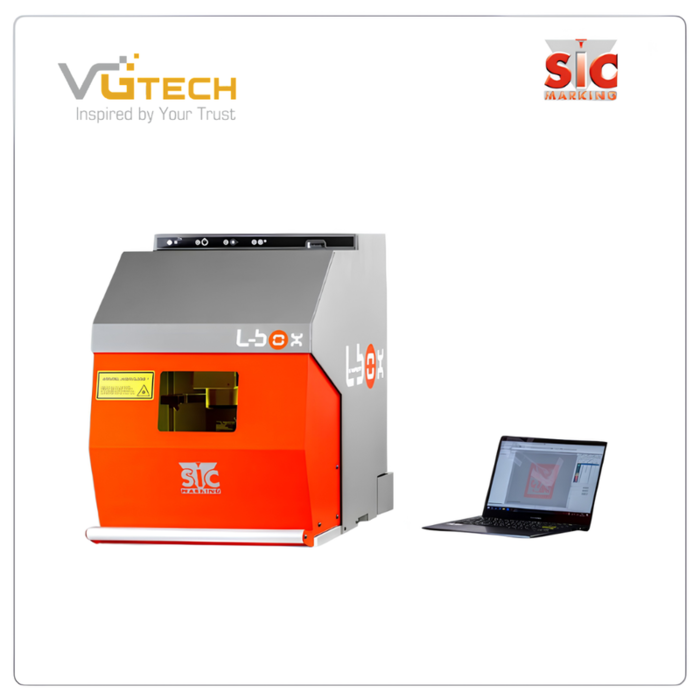

The L-BOX Laser Marking System operates on a PC-based platform using SIC Marking’s proprietary software interface, SIC Laser Advanced.
The software allows users to create and edit marking files while managing laser source parameters directly any connected computer. Advanced configuration settings include marking time optimization, contrast and color enhancement, marking speed adjustment, pulse frequency control, and laser power configuration.
OPTIONAL ACCESSORIES
- Control panel
- Genuine fixture plate
- Automatic Z-axis for parts 50 – 250 mm
- D-axis rotary attachment
- Fume and dust extraction unit
WHY CHOOSE VGTECH
VGTECH (Viet Global Trading & Technology Co., Ltd.) proudly provides leading marking solutions SIC Marking in Vietnam
- Genuine products: Direct import with full CO/CQ documentation
- Competitive pricing: Attractive policies for B2B customers and projects
- Professional technical service: Installation, training, and on-site support in Hai Duong, Hai Phong, Bac Ninh, and surrounding areas
- Free sample marking: Send your parts for real marking tests and evaluation
