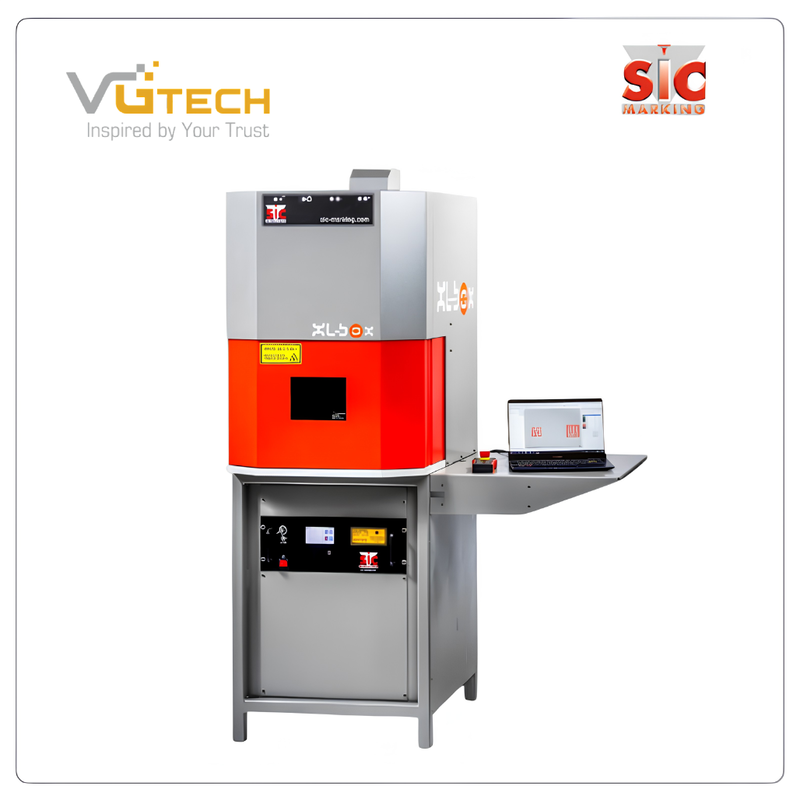

XL-BOX Integrated Laser Marking System
5 (1 đánh giá)
XL-BOX Integrated Laser Marking System
As its name suggests, the XL-BOX laser marking system SIC is a leading workstation, designed with features and dimensions that enhance productivity and adapt to evolving manufacturing needs.
- LARGE SIZE: Spacious marking area, capable of handling bulky parts
- VERSATILE: Marks all content on both metal and plastic materials
- POWERFUL: Exceptional speed and deep marking capability
- USER-FRIENDLY: Smart Z-axis, automated door, and intuitive software
- RELIABLE: Maintenance-free operation with up to 5-year warranty
Contact
(+84)-964-658-958
Advantage
XL-BOX Integrated System – The Ideal Laser Marking Solution
.png)

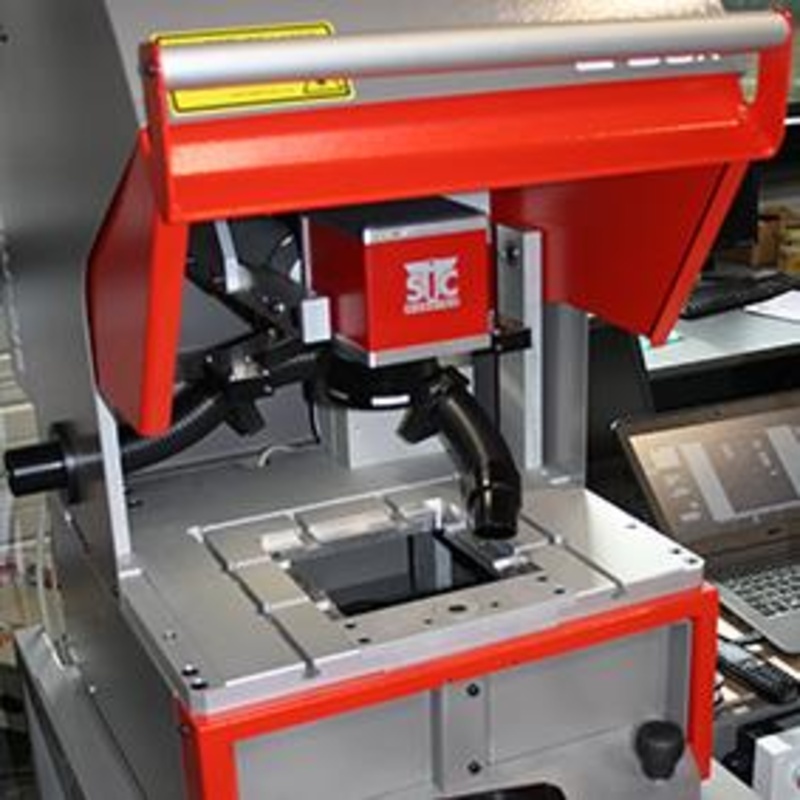

The XL-BOX is equipped with a safety door featuring a pneumatic system, automatically locking during operation and opening once the marking cycle is complete.
.jpg)
A versatile laser marking workstation operated via SIC’s proprietary, user-friendly software: SIC LASER PC.

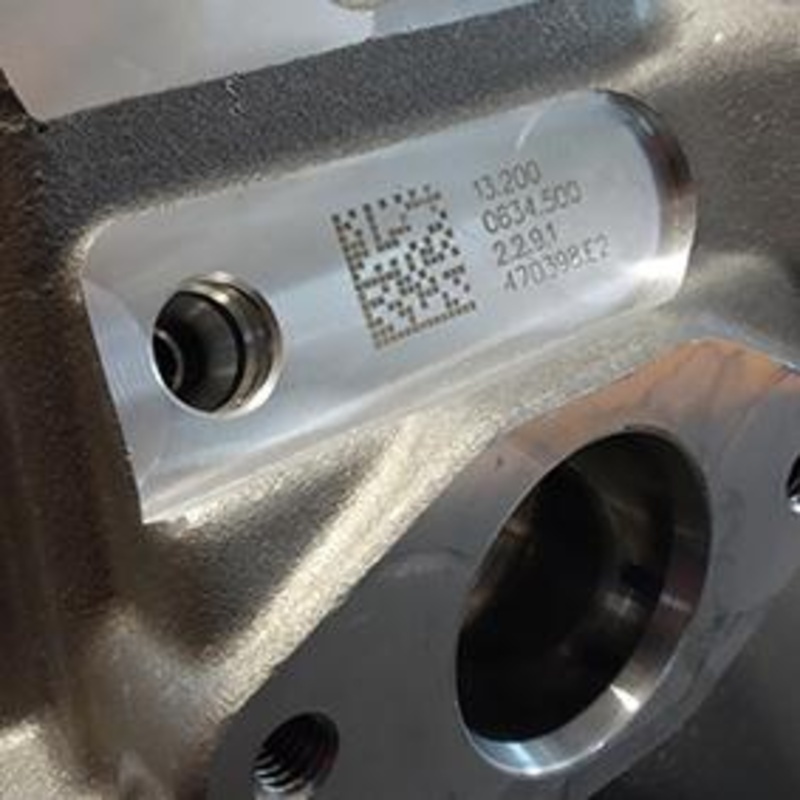

Equipped with a high-power pulsed ytterbium fiber laser, enabling marking of text, numbers, barcodes, and 2D DataMatrix codes on all metals and certain plastics.
XL-BOX Integrated Laser Marking System
GENERAL SPECIFICATIONS – XL-BOX LASER MARKING SYSTEM
The XL-BOX laser marking system is designed to operate with a column-mounted marking head and a fiber unit controller installed on a dedicated frame.
Mechanical Specifications:
- Marking Window: 60×60 mm / 100×100 mm / 170×170 mm / 220×220 mm / 300×300 mm
- External Dimensions: 655 × 756 × 1020 mm
- Working Area: 570 × 564 mm
- Max Part Size: Height up to 370 mm, Length up to 570 mm
- Safety Protection: Fully enclosed Class 1 (EN 60825-1)
- Control: PC connection
Laser Source:
- Type: Pulsed Ytterbium Fiber Laser
- Operating Mode: Pulsed (20–500 kHz)
- Wavelength: 1064 nm
- Laser Cable Length: 3 m
- Average Power: 20W / 30W / 50W
- Peak Power: 10 kW
- Focus: Integrated in marking head
- Cooling System: Air-cooled
Software:
The XL-BOX operates with SIC Laser PC, a proprietary Windows-based software with an intuitive interface and minimal training requirements.
Key features include:
- Create and edit marking files (text, drawings, barcodes, DataMatrix)
- Adjust laser parameters (speed, power, pulse frequency)
- Data fonts: standard text, 1D barcode, 2D DataMatrix
- Image support: .bmp, .jpg and vector files (.plt, .dxf, .ai)
- Database integration (.txt, .xls)
- Marking on cylindrical and complex shapes
- Integrated input/output control
Optional Accessories:
- Control panel
- D-axis rotary unit
- Fume extraction system
WHY CHOOSE VGTECH
VGTECH (Viet Global Trading & Technology Co., Ltd.) proudly provides leading marking solutions SIC Marking in Vietnam
- Genuine products: Direct import with full CO/CQ documentation
- Competitive pricing: Attractive policies for B2B customers and projects
- Professional technical service: Installation, training, and on-site support in Hai Duong, Hai Phong, Bac Ninh, and surrounding areas
- Free sample marking: Send your parts for real marking tests and evaluation
