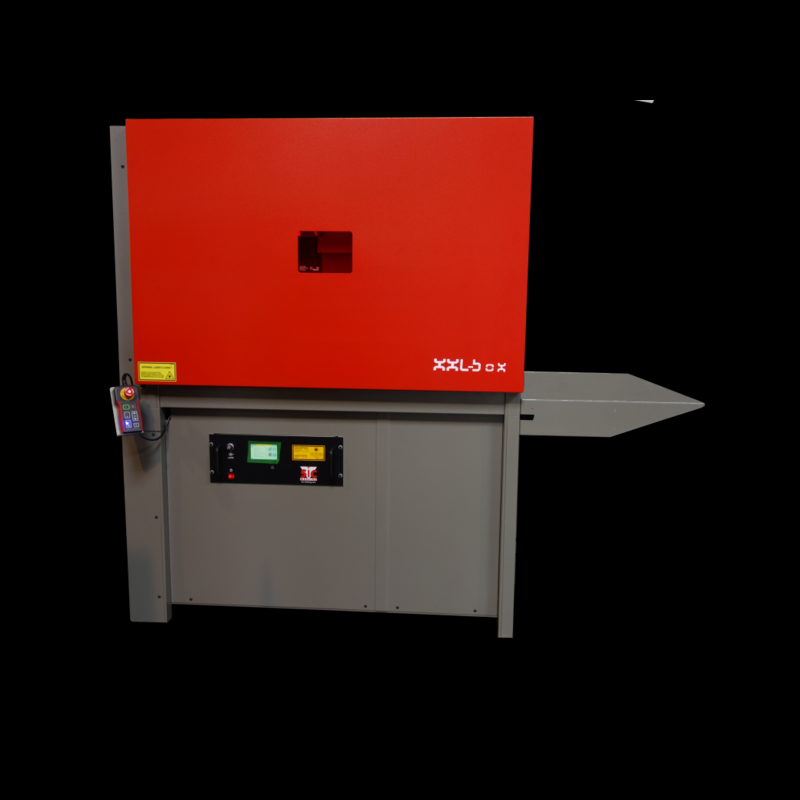

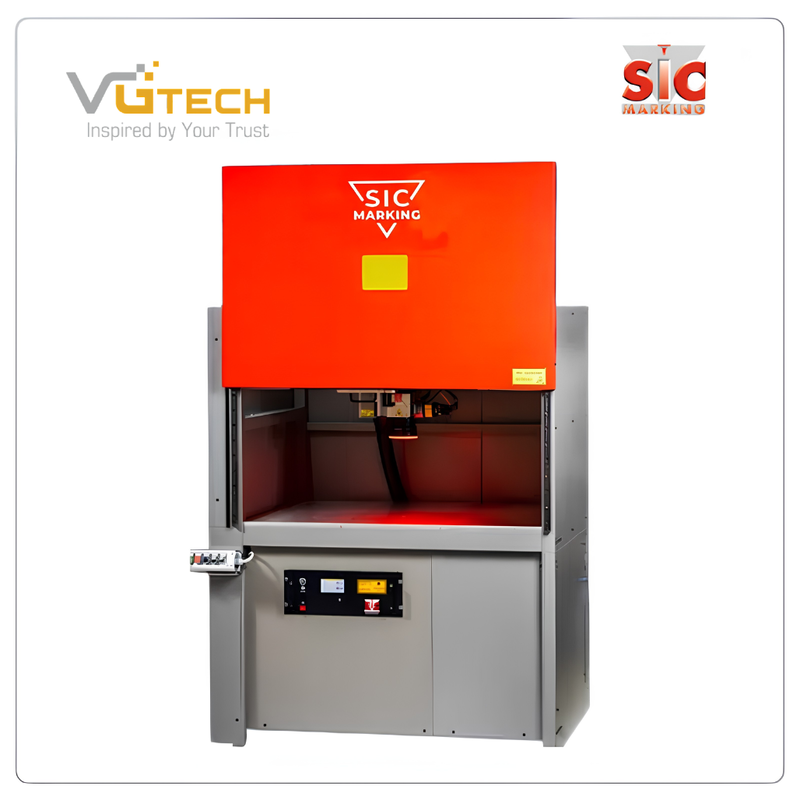

XXL-BOX Integrated Laser Marking System
5 (1 đánh giá)
XXL-BOX Integrated Laser Marking System
To meet diverse production needs, the XXL-BOX laser system is equipped with a wide range of standard and customizable options, making it a highly versatile modular solution:
- EXTRA-LARGE SIZE: Huge marking area, easily accommodates bulky parts
- POWERFUL: Fiber laser source up to 50W, delivering high efficiency, precision, and speed
- AUTOMATED: Fully automatable with robot integration
- VERSATILE: Unlimited accessories, supports marking on all materials, surfaces, and even 3D marking
- USER-FRIENDLY: Intuitive and easy-to-use software interface
- SAFE: Class 4 protection (EN60825-1) with fume extraction system for a safer working environment
The XXL-BOX integrated laser system is designed to operate with an internal Fiber Unit controller.
Contact
(+84)-964-658-958
Advantage

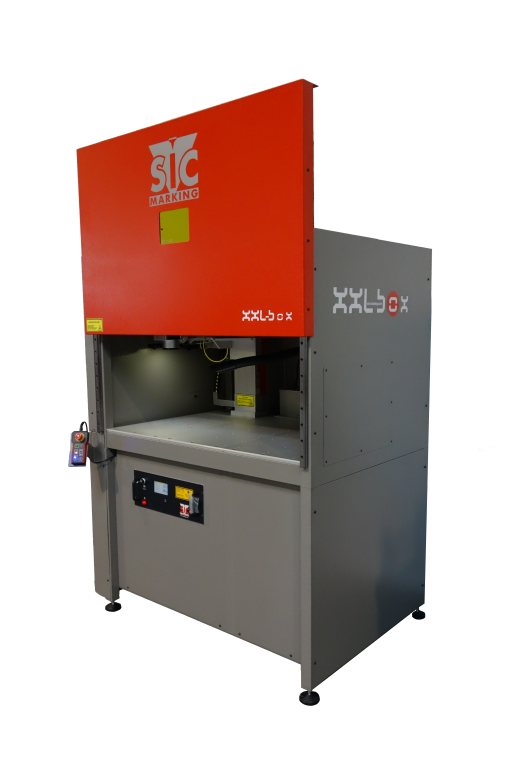

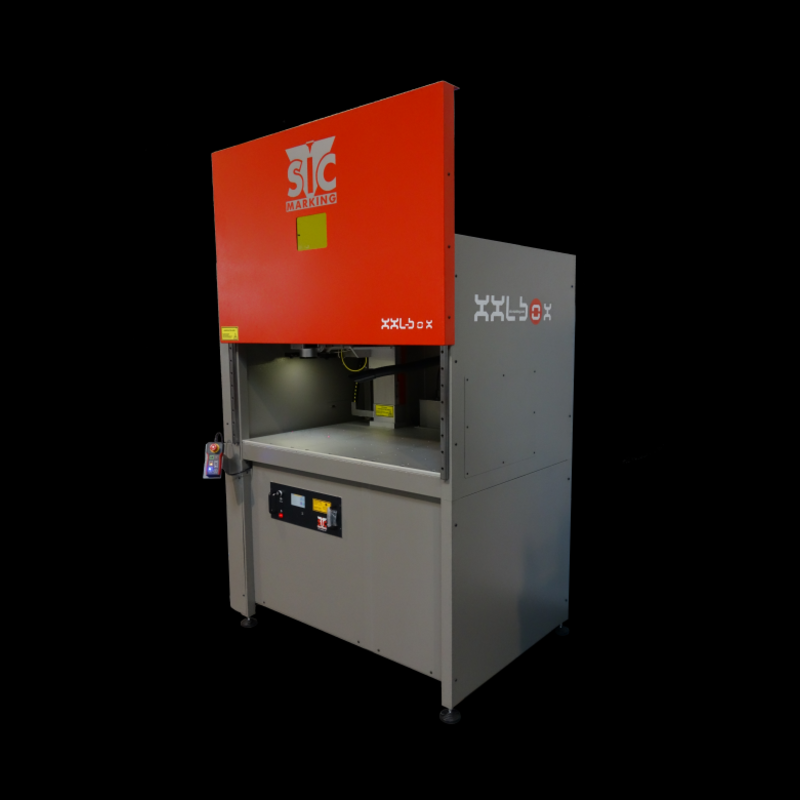

Available in 3 widths (800, 1200, or 1600 mm) with a depth of 820 mm and the ability to mark parts up to 520 mm high, the XXL-Box offers one of the largest working capacities on the market.
.png)
Operated via SIC’s proprietary and user-friendly software: SIC LASER PC.
.png)

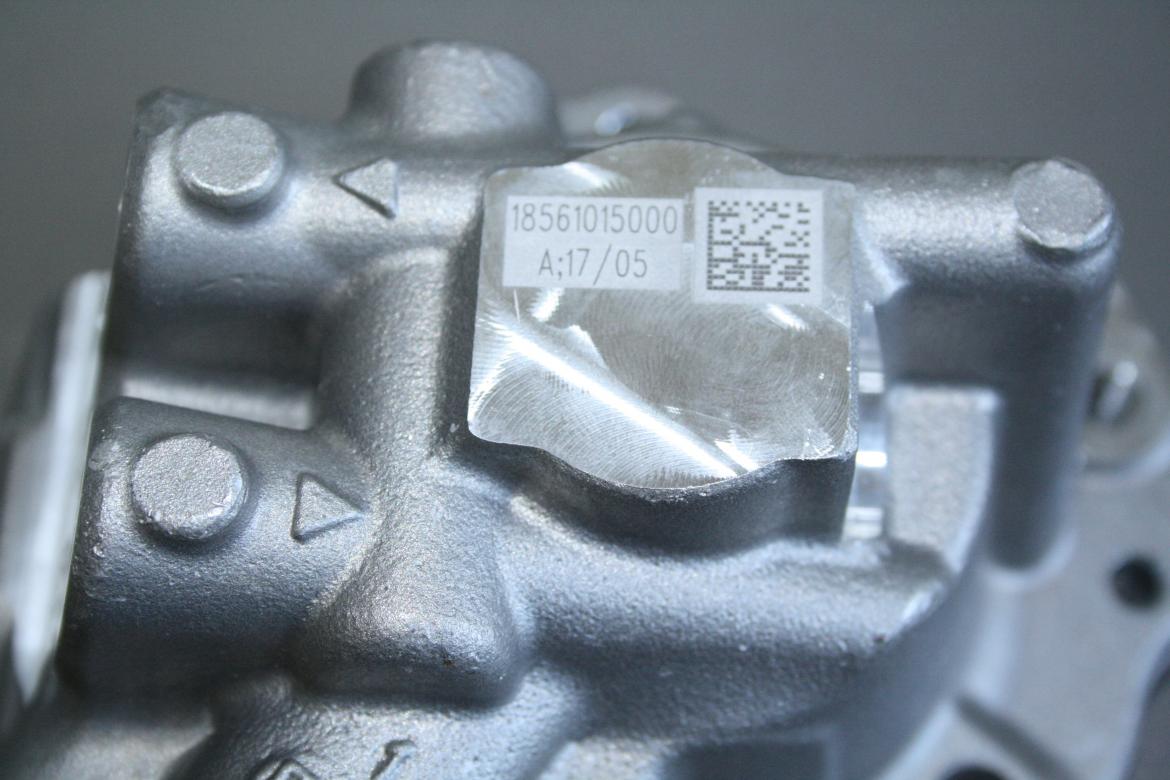

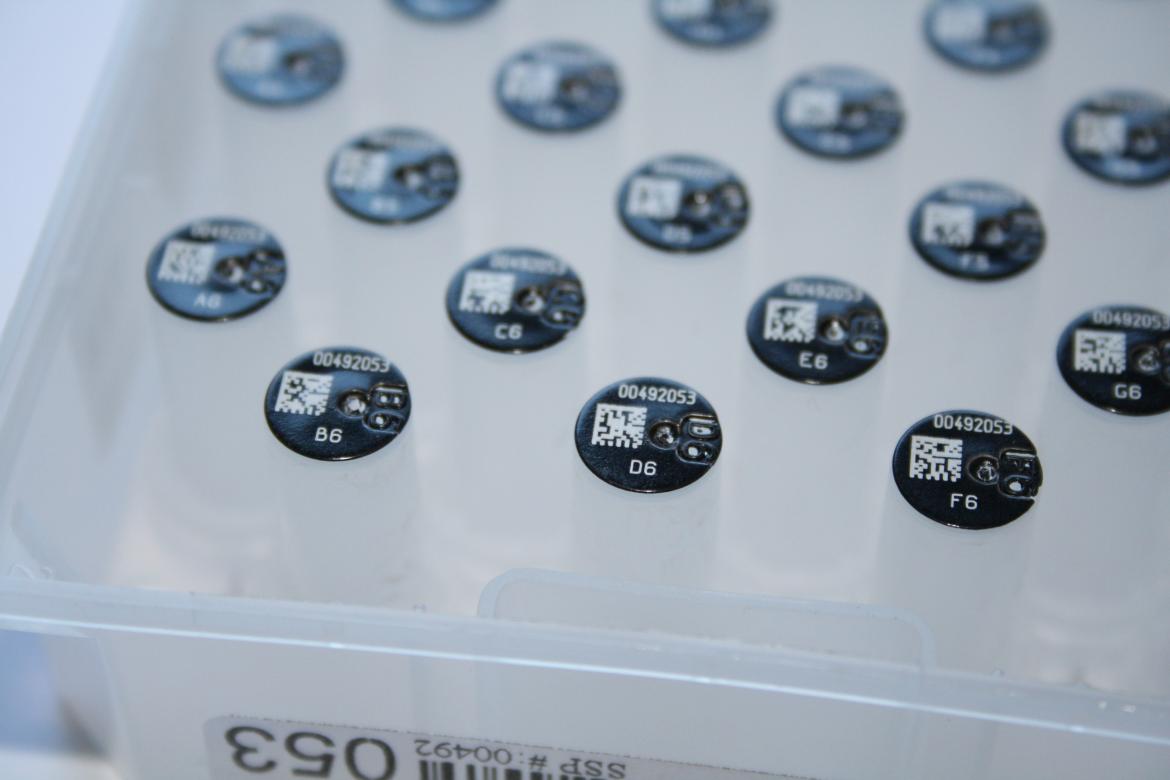

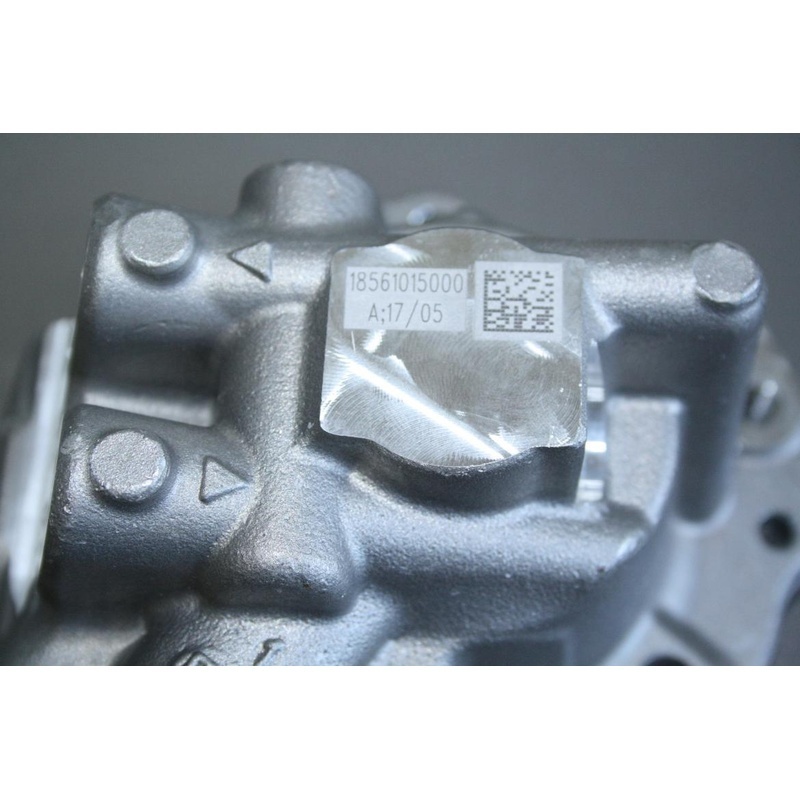

Equipped with a Ytterbium-doped fiber laser source, capable of marking text, numbers, barcodes, and 2D DataMatrix codes on all metals and plastics.
XXL-BOX Integrated Laser Marking System
GENERAL SPECIFICATIONS – XXL-BOX LASER MARKING SYSTEM
Mechanical Specifications:
- Marking Window: 60×60 mm / 100×100 mm / 170×170 mm / 220×220 mm / 300×300 mm
- External Dimensions: 1020×1040×1850 mm (optional extensions: 1020, 1420, or 1820 mm)
- Working Area: 1337 × 800 mm
- Max Part Size: Height up to 520 mm, Length up to 1337 mm
- Safety Protection: Fully enclosed Class 1 (European standard EN 60825-1)
Laser Source:
- Type: Ytterbium doped fiber laser
- Mode: Pulsed (adjustable frequency)
- Wavelength: 1064 nm
- Laser Cable Length: 3 m
- Average Power: 20W / 30W / 50W
- Focus: Integrated in marking head
- Cooling System: Air-cooled
Software:
- Operates with SIC Laser PC software (Windows compatible)
- Easy creation and editing of marking files
Features include:
- Create/edit marking files (text, drawings, barcodes, DataMatrix)
- Laser parameter settings (speed, power, pulse frequency)
- Data fonts: standard text, 1D barcode, 2D DataMatrix
- Image support: .bmp, .jpg and vector files (.plt, .dxf, .ai)
- Database integration (.txt, .xls)
- Marking on cylindrical and complex shapes
- Integrated I/O control
Optional Accessories:
- 3D marking module (auto surface adjustment)
- Industrial communication cards
- Control panel
- D-axis rotary unit
- Automatic Z-axis (for parts 50–250 mm)
- Fume extraction system
- Integrated code-reading camera
